Inheritance diagram for org.matsim.pt.router.TransitRouterConfig:

Public Member Functions
	TransitRouterConfig (final Config config)

	TransitRouterConfig (final ScoringConfigGroup pcsConfig, final RoutingConfigGroup routingConfig, final TransitRouterConfigGroup trConfig, final VspExperimentalConfigGroup vspConfig)

void	setUtilityOfLineSwitch_utl (final double utilityOfLineSwitch_utl_sec)

double	getUtilityOfLineSwitch_utl ()

void	setMarginalUtilityOfTravelTimeWalk_utl_s (final double marginalUtilityOfTravelTimeWalk_utl_s)

double	getMarginalUtilityOfTravelTimeWalk_utl_s ()

void	setMarginalUtilityOfTravelTimePt_utl_s (final double marginalUtilityOfTravelTimeTransit_utl_s)

void	setMarginalUtilityOfTravelDistanceWalk_utl_m (final double marginalUtilityOfTravelDistanceWalk_utl_m)

double	getMarginalUtilityOfTravelTimePt_utl_s ()

void	setMarginalUtilityOfTravelDistancePt_utl_m (final double marginalUtilityOfTravelDistanceTransit_utl_m)

double	getMarginalUtilityOfWaitingPt_utl_s ()

void	setMarginalUtilityOfWaitingPt_utl_s (final double effectiveMarginalUtilityOfWaiting_utl_s)

double	getMarginalUtilityOfTravelDistancePt_utl_m ()

double	getMarginalUtilityOfTravelDistanceWalk_utl_m ()

void	setBeelineWalkSpeed (final double beelineWalkSpeed)

double	getBeelineWalkSpeed ()

double	getSearchRadius ()

void	setSearchRadius (double searchRadius)

double	getExtensionRadius ()

void	setExtensionRadius (double extensionRadius)

double	getBeelineWalkConnectionDistance ()

void	setBeelineWalkConnectionDistance (double beelineWalkConnectionDistance)

double	getAdditionalTransferTime ()

void	setAdditionalTransferTime (double additionalTransferTime)

final Double	getBeelineDistanceFactor ()

double	getDirectWalkFactor ()

boolean	isCacheTree ()

void	setCacheTree (boolean cacheTree)

Private Attributes
double	searchRadius = 1000.0

double	extensionRadius = 200.0

double	beelineWalkConnectionDistance = 100.0

double	additionalTransferTime = 0.0

double	beelineWalkSpeed

double	marginalUtilityOfTravelTimeWalk_utl_s

double	marginalUtilityOfTravelTimeTransit_utl_s

double	marginalUtilityOfWaitingPt_utl_s

double	marginalUtilityOfTravelDistanceWalk_utl_m

double	marginalUtilityOfTravelDistanceTransit_utl_m

double	utilityOfLineSwitch_utl

Double	beelineDistanceFactor

final double	directWalkFactor

boolean	cacheTree

Static Private Attributes
static final Logger	log = LogManager.getLogger( TransitRouterConfig.class )

Detailed Description

Design decisions:

At this point, only those variables that are needed elsewhere (in particular in the scoring) are set from the config. All other variables are considered internal computational variables. kai, feb'11

Definition at line 42 of file TransitRouterConfig.java.

Constructor & Destructor Documentation

◆ TransitRouterConfig() [1/2]

org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig ( final Config config )

Definition at line 105 of file TransitRouterConfig.java.

References org.matsim.core.config.Config.routing(), org.matsim.core.config.Config.scoring(), org.matsim.core.config.Config.transitRouter(), and org.matsim.core.config.Config.vspExperimental().

                                                     {
         this(config.scoring(), config.routing(), config.transitRouter(), config.vspExperimental());
     }

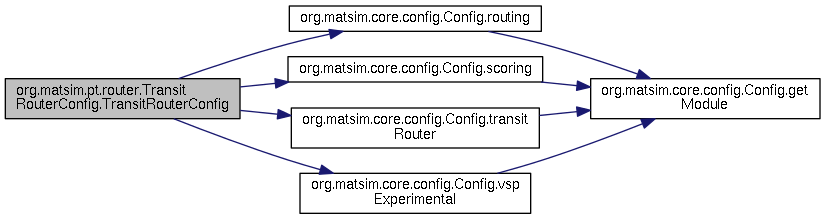

Here is the call graph for this function:

◆ TransitRouterConfig() [2/2]

org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig	(	final ScoringConfigGroup	pcsConfig,
		final RoutingConfigGroup	routingConfig,
		final TransitRouterConfigGroup	trConfig,
		final VspExperimentalConfigGroup	vspConfig
	)

Definition at line 109 of file TransitRouterConfig.java.

     {
         pcsConfig.setLocked(); routingConfig.setLocked() ; trConfig.setLocked() ; vspConfig.setLocked() ;

         if (pcsConfig.getScoringParametersPerSubpopulation().size()>1){
             LogManager.getLogger(getClass()).warn("More than one subpopulation is used in plansCalcScore. "
                     + "This is not currently implemented in the TransitRouter (but should work for scoring),"
                     + " so the values for the \"default\" subpopulation will be used. (jb, Feb 2018)");
         }

         // walk:
         {
             TeleportedModeParams params = routingConfig.getTeleportedModeParams().get( TransportMode.transit_walk );
             if ( params==null ) {
                 params = routingConfig.getTeleportedModeParams().get( TransportMode.non_network_walk );
             }
             if ( params==null ) {
                 params = routingConfig.getTeleportedModeParams().get( TransportMode.walk) ;
             }
             if ( params==null ) {
                 log.error( "teleported mode params do not exist for " + TransportMode.transit_walk + ", " + TransportMode.non_network_walk + ", nor "
                 + TransportMode.walk + ".  At least one of them needs to be defined for TransitRouterConfig.  Aborting ...");
                 // yyyy I do not know which of this is conceptually the correct one.  It should _not_ be walk since that may be routed on the network, see below.  kai, mar'25
             }
             Gbl.assertNotNull( params );
             this.beelineDistanceFactor = params.getBeelineDistanceFactor();
             this.beelineWalkSpeed = params.getTeleportedModeSpeed() / beelineDistanceFactor;
         }
         // yyyyyy the two above need to be moved away from walk since otherwise one is not able to move walk routing to network routing!!!!!! Now trying access_walk ...  kai,
         // apr'19

         this.marginalUtilityOfTravelTimeWalk_utl_s = pcsConfig.getModes().get(TransportMode.walk).getMarginalUtilityOfTraveling() /3600.0 - pcsConfig.getPerforming_utils_hr()/3600. ;

         this.marginalUtilityOfTravelDistanceWalk_utl_m = pcsConfig.getMarginalUtilityOfMoney() *
                 pcsConfig.getModes().get(TransportMode.walk).getMonetaryDistanceRate() +
                 pcsConfig.getModes().get(TransportMode.walk).getMarginalUtilityOfDistance();

         // pt:
         this.marginalUtilityOfTravelTimeTransit_utl_s = pcsConfig.getModes().get(TransportMode.pt).getMarginalUtilityOfTraveling() /3600.0 - pcsConfig.getPerforming_utils_hr()/3600. ;

         this.marginalUtilityOfTravelDistanceTransit_utl_m = pcsConfig.getMarginalUtilityOfMoney() *
                 pcsConfig.getModes().get(TransportMode.pt).getMonetaryDistanceRate() +
                 pcsConfig.getModes().get(TransportMode.pt).getMarginalUtilityOfDistance();

         this.marginalUtilityOfWaitingPt_utl_s = pcsConfig.getMarginalUtlOfWaitingPt_utils_hr() / 3600.0 - pcsConfig.getPerforming_utils_hr()/3600. ;

         this.utilityOfLineSwitch_utl = pcsConfig.getUtilityOfLineSwitch();

         // router:
         this.setSearchRadius(trConfig.getSearchRadius());
         this.setExtensionRadius(trConfig.getExtensionRadius());
         this.setBeelineWalkConnectionDistance(trConfig.getMaxBeelineWalkConnectionDistance());
         this.setAdditionalTransferTime(trConfig.getAdditionalTransferTime());
         this.directWalkFactor = trConfig.getDirectWalkFactor() ;
         this.cacheTree = trConfig.isCacheTree();
     }

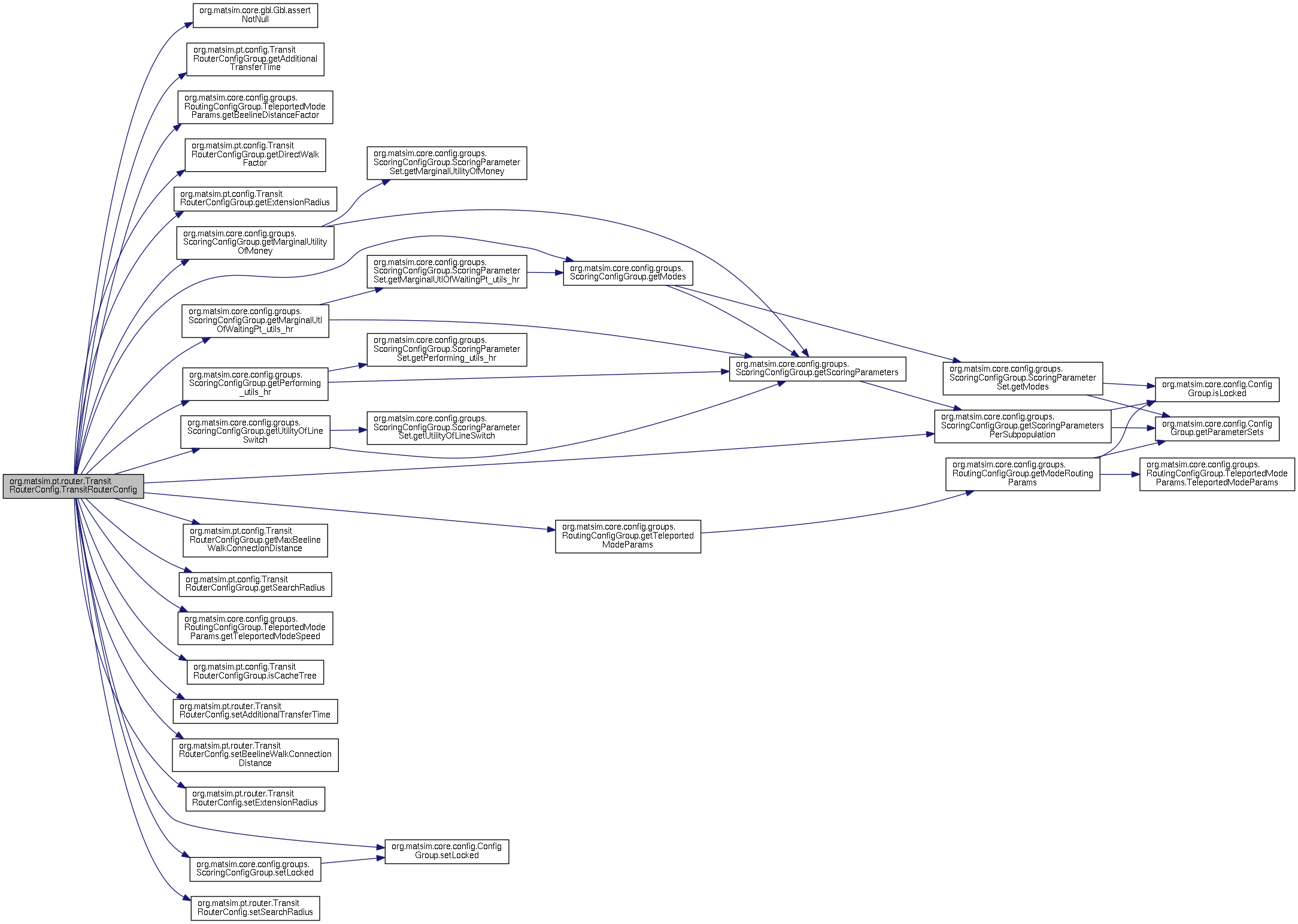

Here is the call graph for this function:

Member Function Documentation

◆ setUtilityOfLineSwitch_utl()

void org.matsim.pt.router.TransitRouterConfig.setUtilityOfLineSwitch_utl ( final double utilityOfLineSwitch_utl_sec )

Definition at line 167 of file TransitRouterConfig.java.

                                                                                      {
         this.utilityOfLineSwitch_utl = utilityOfLineSwitch_utl_sec;
     }

◆ getUtilityOfLineSwitch_utl()

double org.matsim.pt.router.TransitRouterConfig.getUtilityOfLineSwitch_utl ( )

The additional utility to be added when an agent switches lines. Normally negative

The "_utl" can go as soon as we are confident that there are no more utilities in "Eu". kai, feb'11

Definition at line 176 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.utilityOfLineSwitch_utl.

Referenced by ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createParameters().

                                                {
         return this.utilityOfLineSwitch_utl;
     }

◆ setMarginalUtilityOfTravelTimeWalk_utl_s()

void org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelTimeWalk_utl_s ( final double marginalUtilityOfTravelTimeWalk_utl_s )

Definition at line 180 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelTimeWalk_utl_s.

                                                                                                              {
         this.marginalUtilityOfTravelTimeWalk_utl_s = marginalUtilityOfTravelTimeWalk_utl_s;
     }

◆ getMarginalUtilityOfTravelTimeWalk_utl_s()

double org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelTimeWalk_utl_s ( )

Definition at line 184 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelTimeWalk_utl_s.

                                                              {
         return this.marginalUtilityOfTravelTimeWalk_utl_s;
     }

◆ setMarginalUtilityOfTravelTimePt_utl_s()

void org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelTimePt_utl_s ( final double marginalUtilityOfTravelTimeTransit_utl_s )

Definition at line 188 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelTimeTransit_utl_s.

                                                                                                               {
         this.marginalUtilityOfTravelTimeTransit_utl_s = marginalUtilityOfTravelTimeTransit_utl_s;
     }

◆ setMarginalUtilityOfTravelDistanceWalk_utl_m()

void org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelDistanceWalk_utl_m ( final double marginalUtilityOfTravelDistanceWalk_utl_m )

Definition at line 192 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelDistanceWalk_utl_m.

                                                                                                                      {
         this.marginalUtilityOfTravelDistanceWalk_utl_m = marginalUtilityOfTravelDistanceWalk_utl_m;
     }

◆ getMarginalUtilityOfTravelTimePt_utl_s()

double org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelTimePt_utl_s ( )

Returns: the marginal utility of travel time by public transit.

Definition at line 199 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelTimeTransit_utl_s.

                                                            {
         return this.marginalUtilityOfTravelTimeTransit_utl_s;
     }

◆ setMarginalUtilityOfTravelDistancePt_utl_m()

void org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelDistancePt_utl_m ( final double marginalUtilityOfTravelDistanceTransit_utl_m )

Definition at line 203 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelDistanceTransit_utl_m.

                                                                                                                       {
         this.marginalUtilityOfTravelDistanceTransit_utl_m = marginalUtilityOfTravelDistanceTransit_utl_m;
     }

◆ getMarginalUtilityOfWaitingPt_utl_s()

double org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfWaitingPt_utl_s ( )

Definition at line 207 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfWaitingPt_utl_s.

Referenced by ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createParameters().

                                                         {
         return this.marginalUtilityOfWaitingPt_utl_s;
     }

◆ setMarginalUtilityOfWaitingPt_utl_s()

void org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfWaitingPt_utl_s ( final double effectiveMarginalUtilityOfWaiting_utl_s )

Definition at line 211 of file TransitRouterConfig.java.

                                                                                                           {
         this.marginalUtilityOfWaitingPt_utl_s = effectiveMarginalUtilityOfWaiting_utl_s;
     }

◆ getMarginalUtilityOfTravelDistancePt_utl_m()

double org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelDistancePt_utl_m ( )

in the config, this is distanceCostRate * margUtlOfMoney. For the router, the conversion to utils seems ok. kai, feb'11

Definition at line 219 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelDistanceTransit_utl_m.

                                                                {
         return this.marginalUtilityOfTravelDistanceTransit_utl_m;
     }

◆ getMarginalUtilityOfTravelDistanceWalk_utl_m()

double org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelDistanceWalk_utl_m ( )

Definition at line 223 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelDistanceWalk_utl_m.

                                                                  {
         return this.marginalUtilityOfTravelDistanceWalk_utl_m;
     }

◆ setBeelineWalkSpeed()

void org.matsim.pt.router.TransitRouterConfig.setBeelineWalkSpeed ( final double beelineWalkSpeed )

Definition at line 227 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.beelineWalkSpeed.

                                                                    {
         this.beelineWalkSpeed = beelineWalkSpeed;
     }

◆ getBeelineWalkSpeed()

double org.matsim.pt.router.TransitRouterConfig.getBeelineWalkSpeed ( )

Walking speed of agents on transfer links, beeline distance.

Definition at line 234 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.beelineWalkSpeed.

Referenced by ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createParameters().

                                         {
         return this.beelineWalkSpeed;
     }

◆ getSearchRadius()

double org.matsim.pt.router.TransitRouterConfig.getSearchRadius ( )

Definition at line 238 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.searchRadius.

                                     {
         return searchRadius;
     }

◆ setSearchRadius()

void org.matsim.pt.router.TransitRouterConfig.setSearchRadius ( double searchRadius )

Definition at line 242 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.searchRadius.

Referenced by org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                                      {
         this.searchRadius = searchRadius;
     }

◆ getExtensionRadius()

double org.matsim.pt.router.TransitRouterConfig.getExtensionRadius ( )

Definition at line 246 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.extensionRadius.

                                        {
         return extensionRadius;
     }

◆ setExtensionRadius()

void org.matsim.pt.router.TransitRouterConfig.setExtensionRadius ( double extensionRadius )

Definition at line 250 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.extensionRadius.

Referenced by org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                                            {
         this.extensionRadius = extensionRadius;
     }

◆ getBeelineWalkConnectionDistance()

double org.matsim.pt.router.TransitRouterConfig.getBeelineWalkConnectionDistance ( )

Definition at line 254 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.beelineWalkConnectionDistance.

                                                      {
         return beelineWalkConnectionDistance;
     }

◆ setBeelineWalkConnectionDistance()

void org.matsim.pt.router.TransitRouterConfig.setBeelineWalkConnectionDistance ( double beelineWalkConnectionDistance )

Definition at line 258 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.beelineWalkConnectionDistance.

Referenced by org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                                                                        {
         this.beelineWalkConnectionDistance = beelineWalkConnectionDistance;
     }

◆ getAdditionalTransferTime()

double org.matsim.pt.router.TransitRouterConfig.getAdditionalTransferTime ( )

Definition at line 262 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.additionalTransferTime.

                                               {
         return additionalTransferTime;
     }

◆ setAdditionalTransferTime()

void org.matsim.pt.router.TransitRouterConfig.setAdditionalTransferTime ( double additionalTransferTime )

Definition at line 266 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.additionalTransferTime.

Referenced by org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                                                          {
         this.additionalTransferTime = additionalTransferTime;
     }

◆ getBeelineDistanceFactor()

final Double org.matsim.pt.router.TransitRouterConfig.getBeelineDistanceFactor ( )

Definition at line 270 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.beelineDistanceFactor.

                                                    {
         return this.beelineDistanceFactor;
     }

◆ getDirectWalkFactor()

double org.matsim.pt.router.TransitRouterConfig.getDirectWalkFactor ( )

Definition at line 274 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.directWalkFactor.

                                         {
         return this.directWalkFactor ;
     }

◆ isCacheTree()

boolean org.matsim.pt.router.TransitRouterConfig.isCacheTree ( )

Definition at line 278 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.cacheTree.

                                  {
         return cacheTree;
     }

◆ setCacheTree()

void org.matsim.pt.router.TransitRouterConfig.setCacheTree ( boolean cacheTree )

Definition at line 282 of file TransitRouterConfig.java.

References org.matsim.pt.router.TransitRouterConfig.cacheTree.

                                                 {
         this.cacheTree = cacheTree;
     }

Member Data Documentation

◆ log

final Logger org.matsim.pt.router.TransitRouterConfig.log = LogManager.getLogger( TransitRouterConfig.class )

staticprivate

Definition at line 43 of file TransitRouterConfig.java.

◆ searchRadius

double org.matsim.pt.router.TransitRouterConfig.searchRadius = 1000.0

private

The distance in meters in which stop facilities should be searched for around the start and end coordinate.

Definition at line 49 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getSearchRadius(), and org.matsim.pt.router.TransitRouterConfig.setSearchRadius().

◆ extensionRadius

double org.matsim.pt.router.TransitRouterConfig.extensionRadius = 200.0

private

If no stop facility is found around start or end coordinate (see searchRadius), the nearest stop location is searched for and the distance from start/end coordinate to this location is extended by the given amount.
If only one stop facility is found within searchRadius, the radius is also extended in the hope to find more stop facilities (e.g. in the opposite direction of the already found stop).

Definition at line 61 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getExtensionRadius(), and org.matsim.pt.router.TransitRouterConfig.setExtensionRadius().

◆ beelineWalkConnectionDistance

double org.matsim.pt.router.TransitRouterConfig.beelineWalkConnectionDistance = 100.0

private

The distance in meters that agents can walk to get from one stop to another stop of a nearby transit line.

Is this really needed? If the marg utl of walk is correctly set, this should come out automagically. kai, feb'11 This value is used to generate the walk connections between stop facilities. If they are used, depends on the scoring/cost calculation. But when they are missing, they cannot be used at all. mrieser, mar'11

Definition at line 73 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getBeelineWalkConnectionDistance(), and org.matsim.pt.router.TransitRouterConfig.setBeelineWalkConnectionDistance().

◆ additionalTransferTime

double org.matsim.pt.router.TransitRouterConfig.additionalTransferTime = 0.0

private

The minimum time needed for a transfer is calculated based on the distance and the beeline walk speed between two stop facilities. Due to passengers probably not being able to immediately (=in the same second) leave a transit vehicle, or a vehicle being delayed by a small amount of time, an additional "savety" time can be added to transfers when searching for connecting trips. This could help to find "better" transfer connections such as they can indeed be realized by the simulation. This value only affects the routing process, not the simulation itself.

Definition at line 83 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getAdditionalTransferTime(), and org.matsim.pt.router.TransitRouterConfig.setAdditionalTransferTime().

◆ beelineWalkSpeed

double org.matsim.pt.router.TransitRouterConfig.beelineWalkSpeed

private

Definition at line 85 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getBeelineWalkSpeed(), and org.matsim.pt.router.TransitRouterConfig.setBeelineWalkSpeed().

◆ marginalUtilityOfTravelTimeWalk_utl_s

double org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelTimeWalk_utl_s

private

Definition at line 87 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelTimeWalk_utl_s(), and org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelTimeWalk_utl_s().

◆ marginalUtilityOfTravelTimeTransit_utl_s

double org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelTimeTransit_utl_s

private

Definition at line 89 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelTimePt_utl_s(), and org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelTimePt_utl_s().

◆ marginalUtilityOfWaitingPt_utl_s

double org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfWaitingPt_utl_s

private

Definition at line 91 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfWaitingPt_utl_s().

◆ marginalUtilityOfTravelDistanceWalk_utl_m

double org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelDistanceWalk_utl_m

private

Definition at line 93 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelDistanceWalk_utl_m(), and org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelDistanceWalk_utl_m().

◆ marginalUtilityOfTravelDistanceTransit_utl_m

double org.matsim.pt.router.TransitRouterConfig.marginalUtilityOfTravelDistanceTransit_utl_m

private

Definition at line 95 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getMarginalUtilityOfTravelDistancePt_utl_m(), and org.matsim.pt.router.TransitRouterConfig.setMarginalUtilityOfTravelDistancePt_utl_m().

◆ utilityOfLineSwitch_utl

double org.matsim.pt.router.TransitRouterConfig.utilityOfLineSwitch_utl

private

Definition at line 97 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getUtilityOfLineSwitch_utl().

◆ beelineDistanceFactor

Double org.matsim.pt.router.TransitRouterConfig.beelineDistanceFactor

private

Definition at line 99 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getBeelineDistanceFactor(), and org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

◆ directWalkFactor

final double org.matsim.pt.router.TransitRouterConfig.directWalkFactor

private

Definition at line 101 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.getDirectWalkFactor().

◆ cacheTree

boolean org.matsim.pt.router.TransitRouterConfig.cacheTree

private

Definition at line 103 of file TransitRouterConfig.java.

Referenced by org.matsim.pt.router.TransitRouterConfig.isCacheTree(), and org.matsim.pt.router.TransitRouterConfig.setCacheTree().

The documentation for this class was generated from the following file:

pt/router/TransitRouterConfig.java

Public Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TransitRouterConfig() [1/2]

◆ TransitRouterConfig() [2/2]

Member Function Documentation

◆ setUtilityOfLineSwitch_utl()

◆ getUtilityOfLineSwitch_utl()

◆ setMarginalUtilityOfTravelTimeWalk_utl_s()

◆ getMarginalUtilityOfTravelTimeWalk_utl_s()

◆ setMarginalUtilityOfTravelTimePt_utl_s()

◆ setMarginalUtilityOfTravelDistanceWalk_utl_m()

◆ getMarginalUtilityOfTravelTimePt_utl_s()

◆ setMarginalUtilityOfTravelDistancePt_utl_m()

◆ getMarginalUtilityOfWaitingPt_utl_s()

◆ setMarginalUtilityOfWaitingPt_utl_s()

◆ getMarginalUtilityOfTravelDistancePt_utl_m()

◆ getMarginalUtilityOfTravelDistanceWalk_utl_m()

◆ setBeelineWalkSpeed()

◆ getBeelineWalkSpeed()

◆ getSearchRadius()

◆ setSearchRadius()

◆ getExtensionRadius()

◆ setExtensionRadius()

◆ getBeelineWalkConnectionDistance()

◆ setBeelineWalkConnectionDistance()

◆ getAdditionalTransferTime()

◆ setAdditionalTransferTime()

◆ getBeelineDistanceFactor()

◆ getDirectWalkFactor()

◆ isCacheTree()

◆ setCacheTree()

Member Data Documentation

◆ log

◆ searchRadius

◆ extensionRadius

◆ beelineWalkConnectionDistance

◆ additionalTransferTime

◆ beelineWalkSpeed

◆ marginalUtilityOfTravelTimeWalk_utl_s

◆ marginalUtilityOfTravelTimeTransit_utl_s

◆ marginalUtilityOfWaitingPt_utl_s

◆ marginalUtilityOfTravelDistanceWalk_utl_m

◆ marginalUtilityOfTravelDistanceTransit_utl_m

◆ utilityOfLineSwitch_utl

◆ beelineDistanceFactor

◆ directWalkFactor

◆ cacheTree
