org.matsim.core.config.Config Class Reference

Inheritance diagram for org.matsim.core.config.Config:

Public Member Functions
	Config ()
void	addCoreModules ()
void	checkConsistency ()
final ConfigGroup	createModule (final String name)
final void	addModule (final ConfigGroup specializedConfigModule)
final void	removeModule (final String name)
final TreeMap< String, ConfigGroup >	getModules ()
final ConfigGroup	getModule (final String moduleName)
final String	getParam (final String moduleName, final String paramName)
final String	findParam (final String moduleName, final String paramName)
final String	toString ()
final void	setParam (final String moduleName, final String paramName, final String value)
final GlobalConfigGroup	global ()
final ControllerConfigGroup	controller ()
final CountsConfigGroup	counts ()
final ScoringConfigGroup	scoring ()
final NetworkConfigGroup	network ()
final PlansConfigGroup	plans ()
final HouseholdsConfigGroup	households ()
final FacilitiesConfigGroup	facilities ()
final ReplanningConfigGroup	replanning ()
TravelTimeCalculatorConfigGroup	travelTimeCalculator ()
ScenarioConfigGroup	scenario ()
RoutingConfigGroup	routing ()
VspExperimentalConfigGroup	vspExperimental ()
QSimConfigGroup	qsim ()
TransitConfigGroup	transit ()
TransitRouterConfigGroup	transitRouter ()
LinkStatsConfigGroup	linkStats ()
TimeAllocationMutatorConfigGroup	timeAllocationMutator ()
EventsManagerConfigGroup	eventsManager ()
SubtourModeChoiceConfigGroup	subtourModeChoice ()
ChangeModeConfigGroup	changeMode ()
HermesConfigGroup	hermes ()
ReplanningAnnealerConfigGroup	replanningAnnealer ()
PlanInheritanceConfigGroup	planInheritance ()
void	addConfigConsistencyChecker (final ConfigConsistencyChecker checker)
void	removeConfigConsistencyChecker (final Class clazz)
final boolean	isLocked ()
final void	setLocked (boolean locked)
final VehiclesConfigGroup	vehicles ()
void	setContext (URL context)
URL	getContext ()

Private Member Functions
void	checkIfLocked ()

Static Private Member Functions
static void	copyTo (ConfigGroup source, ConfigGroup destination)

Private Attributes
final TreeMap< String, ConfigGroup >	modules = new TreeMap<>()
final List< ConfigConsistencyChecker >	consistencyCheckers = new ArrayList<>()
boolean	locked = false
URL	context

Static Private Attributes
static final Logger	log = LogManager.getLogger(Config.class)

Detailed Description

Stores all configuration settings specified in a configuration file and provides access to the settings at runtime.

See also

CreateFullConfig

Author

mrieser

Definition at line 73 of file Config.java.

Constructor & Destructor Documentation

Config()

org.matsim.core.config.Config.Config

(

)

Definition at line 103 of file Config.java.

References org.matsim.core.config.Config.setContext().

                    {
        try {
            URL currentDir = Paths.get("").toUri().toURL();
            setContext(currentDir);
        } catch (MalformedURLException e) {
            throw new RuntimeException(e);
        }
    }

Here is the call graph for this function:

Member Function Documentation

addCoreModules()

void org.matsim.core.config.Config.addCoreModules

(

)

Adds all the commonly used config-groups, also known as "core modules", to this config-instance. This should be called before reading any configuration from file.

Definition at line 117 of file Config.java.

References org.matsim.core.config.Config.addConfigConsistencyChecker(), org.matsim.core.config.groups.ChangeLegModeConfigGroup.CONFIG_MODULE, org.matsim.core.config.groups.ChangeModeConfigGroup.CONFIG_MODULE, org.matsim.pt.config.TransitRouterConfigGroup.GROUP_NAME, org.matsim.core.config.groups.VehiclesConfigGroup.GROUP_NAME, org.matsim.core.config.groups.TimeAllocationMutatorConfigGroup.GROUP_NAME, org.matsim.core.config.groups.LinkStatsConfigGroup.GROUP_NAME, org.matsim.core.config.groups.PlanInheritanceConfigGroup.GROUP_NAME, org.matsim.core.config.groups.NetworkConfigGroup.GROUP_NAME, org.matsim.core.config.groups.EventsManagerConfigGroup.GROUP_NAME, org.matsim.core.config.groups.HouseholdsConfigGroup.GROUP_NAME, org.matsim.core.config.groups.FacilitiesConfigGroup.GROUP_NAME, org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.GROUP_NAME, org.matsim.core.config.groups.GlobalConfigGroup.GROUP_NAME, org.matsim.core.config.groups.PlansConfigGroup.GROUP_NAME, org.matsim.core.config.groups.ScenarioConfigGroup.GROUP_NAME, org.matsim.core.config.groups.VspExperimentalConfigGroup.GROUP_NAME, org.matsim.core.config.groups.CountsConfigGroup.GROUP_NAME, org.matsim.core.replanning.annealing.ReplanningAnnealerConfigGroup.GROUP_NAME, org.matsim.pt.config.TransitConfigGroup.GROUP_NAME, org.matsim.core.config.groups.ReplanningConfigGroup.GROUP_NAME, org.matsim.core.config.groups.QSimConfigGroup.GROUP_NAME, org.matsim.core.config.groups.RoutingConfigGroup.GROUP_NAME, org.matsim.core.config.groups.ControllerConfigGroup.GROUP_NAME, org.matsim.core.config.groups.ScoringConfigGroup.GROUP_NAME, org.matsim.core.config.groups.TravelTimeCalculatorConfigGroup.GROUPNAME, and org.matsim.core.mobsim.hermes.HermesConfigGroup.NAME.

Referenced by org.matsim.core.config.ConfigUtils.createConfig(), and org.matsim.core.config.ConfigUtils.loadConfig().

                                 {
        this.modules.put(GlobalConfigGroup.GROUP_NAME, new GlobalConfigGroup());

        this.modules.put(ControllerConfigGroup.GROUP_NAME, new ControllerConfigGroup());

        this.modules.put(QSimConfigGroup.GROUP_NAME, new QSimConfigGroup());

        this.modules.put(CountsConfigGroup.GROUP_NAME, new CountsConfigGroup());
        this.modules.put(ScoringConfigGroup.GROUP_NAME, new ScoringConfigGroup());

        this.modules.put(NetworkConfigGroup.GROUP_NAME, new NetworkConfigGroup());

        this.modules.put(PlansConfigGroup.GROUP_NAME, new PlansConfigGroup());

        this.modules.put(HouseholdsConfigGroup.GROUP_NAME, new HouseholdsConfigGroup());

        this.modules.put(EventsManagerConfigGroup.GROUP_NAME, new EventsManagerConfigGroup() );

        this.modules.put(FacilitiesConfigGroup.GROUP_NAME, new FacilitiesConfigGroup());

        this.modules.put(ReplanningConfigGroup.GROUP_NAME, new ReplanningConfigGroup());

        this.modules.put(TravelTimeCalculatorConfigGroup.GROUPNAME, new TravelTimeCalculatorConfigGroup());

        this.modules.put(ScenarioConfigGroup.GROUP_NAME, new ScenarioConfigGroup());

        this.modules.put(RoutingConfigGroup.GROUP_NAME, new RoutingConfigGroup());

        this.modules.put(TimeAllocationMutatorConfigGroup.GROUP_NAME, new TimeAllocationMutatorConfigGroup());

        this.modules.put(VspExperimentalConfigGroup.GROUP_NAME, new VspExperimentalConfigGroup());


        this.modules.put(TransitConfigGroup.GROUP_NAME, new TransitConfigGroup());

        this.modules.put(LinkStatsConfigGroup.GROUP_NAME, new LinkStatsConfigGroup());

        this.modules.put(TransitRouterConfigGroup.GROUP_NAME, new TransitRouterConfigGroup());

        this.modules.put( SubtourModeChoiceConfigGroup.GROUP_NAME , new SubtourModeChoiceConfigGroup() );

        this.modules.put( VehiclesConfigGroup.GROUP_NAME , new VehiclesConfigGroup() ) ;

        this.modules.put(ChangeModeConfigGroup.CONFIG_MODULE, new ChangeModeConfigGroup());

        this.modules.put(ChangeLegModeConfigGroup.CONFIG_MODULE, new ChangeLegModeConfigGroup());
        // only to provide error messages. kai, may'16

        this.modules.put(HermesConfigGroup.NAME, new HermesConfigGroup());

        this.modules.put(ReplanningAnnealerConfigGroup.GROUP_NAME, new ReplanningAnnealerConfigGroup());

        this.modules.put(PlanInheritanceConfigGroup.GROUP_NAME, new PlanInheritanceConfigGroup());

        this.addConfigConsistencyChecker(new VspConfigConsistencyCheckerImpl());
        this.addConfigConsistencyChecker(new UnmaterializedConfigGroupChecker());
        this.addConfigConsistencyChecker(new BeanValidationConfigConsistencyChecker());
    }

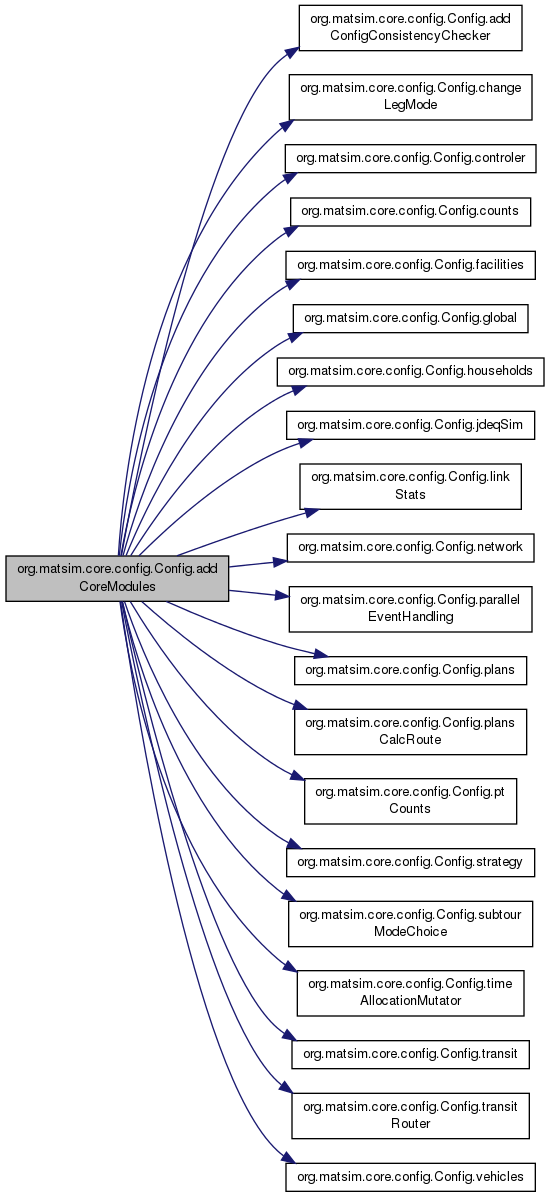

Here is the call graph for this function:

checkConsistency()

void org.matsim.core.config.Config.checkConsistency

(

)

Checks each module for consistency, e.g. if the parameters that are currently set make sense in their combination.

Definition at line 180 of file Config.java.

Referenced by org.matsim.core.controler.ControllerUtils.checkConfigConsistencyAndWriteToLog(), and org.matsim.core.controler.Controler.createInjector().

                                   {
        for (ConfigGroup m : this.modules.values()) {
            m.checkConsistency(this);
        }
        for (ConfigConsistencyChecker c : this.consistencyCheckers) {
            c.checkConsistency(this);
        }
//        for (Module m : this.modules.values()) {
//            if (m.getClass() == Module.class) {
//                throw new RuntimeException("Config group " + m.getName() + " is present, but has never been read." +
//                        "This is probably an error: You may be expecting functionality which is not available." +
//                        "Maybe you need to add something to the Controler?");
//            }
//        }
    }

createModule()

final ConfigGroup org.matsim.core.config.Config.createModule

(

final String

name

)

Creates a new module / config-group with the specified name.

Parameters

name	The name of the config-group to be created.

Returns

the newly created config group

Exceptions

IllegalArgumentException

if a config-group with the specified name already exists.

Definition at line 210 of file Config.java.

Referenced by org.matsim.core.config.Config.setParam().

                                                             {
        if (this.modules.containsKey(name)) {
            throw new IllegalArgumentException("Module " + name + " exists already.");
        }
        ConfigGroup m = new ConfigGroup(name);
        this.modules.put(name, m);
        return m;
    }

addModule()

final void org.matsim.core.config.Config.addModule

(

final ConfigGroup

specializedConfigModule

)

Adds the specified module / config-group with the specified name to the configuration.

This is the typical way to "materialize" material that, so far, exists only as Map, into a specialized module.

Parameters

specializedConfigModule

Exceptions

IllegalArgumentException

if a config-group with the specified name already exists.

Definition at line 229 of file Config.java.

References org.matsim.core.config.ConfigGroup.getName().

Referenced by org.matsim.core.config.ConfigUtils.addOrGetModule(), org.matsim.core.config.ConfigUtils.createConfig(), org.matsim.core.config.ConfigUtils.loadConfig(), and org.matsim.run.ConvertOldPlanCalcScoreConfigGroup.main().

                                                                           {
        String name = specializedConfigModule.getName();
        if (name == null || name.isEmpty()) {
            throw new RuntimeException("cannot insert module with empty name") ;
        }
        // The logic is as follows:
        // (1) assume that module is some SpecializedConfigModule that extends Module

        // (2) it is presumably found here from parsing, but as a general Module:
        ConfigGroup m = this.modules.get(name);

        if (m != null) {
            // (3) this is the corresponding test: m is general, module is specialized:
            if (m.getClass() == ConfigGroup.class && specializedConfigModule.getClass() != ConfigGroup.class) {
                // (4) go through everything in m (from parsing) and add it to module:
                copyTo(m, specializedConfigModule);

                // (5) register the resulting module under "name" (which will over-write m):
                this.modules.put(name, specializedConfigModule);
            } else {
                throw new IllegalArgumentException("Module " + name + " exists already.");
            }
        }
        this.modules.put(name, specializedConfigModule);
    }

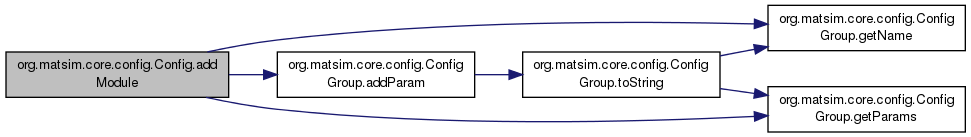

Here is the call graph for this function:

copyTo()

static void org.matsim.core.config.Config.copyTo ( ConfigGroup  source, ConfigGroup  destination  )

staticprivate

Definition at line 255 of file Config.java.

References org.matsim.core.config.ConfigGroup.addParam(), org.matsim.core.config.ConfigGroup.addParameterSet(), org.matsim.core.config.ConfigGroup.createParameterSet(), org.matsim.core.config.ConfigGroup.getParameterSets(), and org.matsim.core.config.ConfigGroup.getParams().

                                                                            {
        for (Map.Entry<String, String> e : source.getParams().entrySet()) {
            destination.addParam(e.getKey(), e.getValue());
        }

        for (Collection<? extends ConfigGroup> sourceSets : source.getParameterSets().values()) {
            for (ConfigGroup sourceSet : sourceSets) {
                ConfigGroup destinationSet = destination.createParameterSet(sourceSet.getName());
                copyTo(sourceSet, destinationSet);
                destination.addParameterSet(destinationSet);
            }
        }
    }

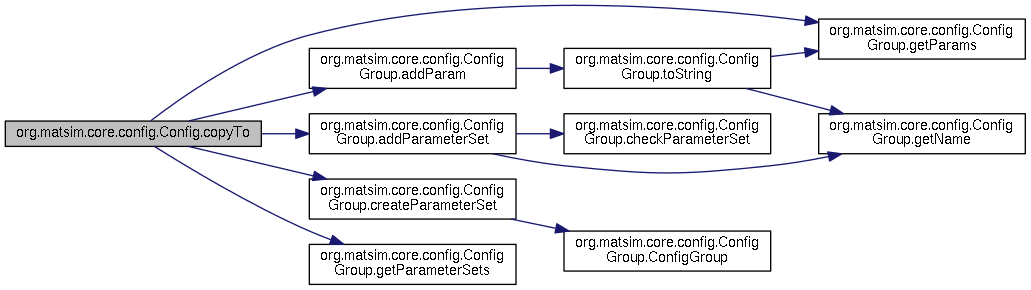

Here is the call graph for this function:

removeModule()

final void org.matsim.core.config.Config.removeModule

(

final String

name

)

Removes the specified module / config-group with the specified name from the configuration. Does nothing if this module was not existing.

Parameters

name

Definition at line 276 of file Config.java.

                                                      {
        if (this.modules.containsKey(name)) {
            this.modules.remove(name);
            log.warn("Module \"" + name + "\" is removed manually from config");

        }
    }

getModules()

final TreeMap<String, ConfigGroup> org.matsim.core.config.Config.getModules

(

)

Definition at line 288 of file Config.java.

References org.matsim.core.config.Config.modules.

Referenced by org.matsim.core.config.consistency.UnmaterializedConfigGroupChecker.checkConsistency(), org.matsim.core.config.consistency.BeanValidationConfigConsistencyChecker.checkConsistency(), org.matsim.core.mobsim.qsim.components.QSimComponentsFromConfigConfigurator.configure(), org.matsim.core.controler.ExplodedConfigModule.configure(), org.matsim.core.config.ConfigUtils.hasModule(), and org.matsim.core.config.ConfigWriter.write().

                                                           {
        return this.modules;
    }

getModule()

final ConfigGroup org.matsim.core.config.Config.getModule

(

final String

moduleName

)

Returns the requested module, or null if the module does not exist.

Parameters

moduleName

name of the requested module

Returns

requested module

Definition at line 301 of file Config.java.

Referenced by org.matsim.core.config.ConfigUtils.addOrGetModule(), org.matsim.core.config.Config.changeMode(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkLocationChoiceConfigGroup(), org.matsim.core.config.Config.controller(), org.matsim.core.config.Config.counts(), org.matsim.core.config.Config.eventsManager(), org.matsim.core.config.Config.facilities(), org.matsim.core.config.Config.global(), org.matsim.core.config.Config.hermes(), org.matsim.core.config.Config.households(), org.matsim.core.config.Config.linkStats(), org.matsim.core.config.Config.network(), org.matsim.core.config.Config.planInheritance(), org.matsim.core.config.Config.plans(), org.matsim.core.config.Config.qsim(), org.matsim.core.config.Config.replanning(), org.matsim.core.config.Config.replanningAnnealer(), org.matsim.core.config.Config.routing(), org.matsim.core.config.Config.scenario(), org.matsim.core.config.Config.scoring(), org.matsim.core.config.Config.subtourModeChoice(), org.matsim.core.config.Config.timeAllocationMutator(), org.matsim.core.config.Config.transit(), org.matsim.core.config.Config.transitRouter(), org.matsim.core.config.Config.travelTimeCalculator(), org.matsim.core.config.Config.vehicles(), and org.matsim.core.config.Config.vspExperimental().

                                                                {
        return this.modules.get(moduleName);
    }

getParam()

final String org.matsim.core.config.Config.getParam	(	final String	moduleName,
		final String	paramName
	)

Returns the requested parameter. If the module or parameter is not known, an error is logged and an IllegalArgumentException is thrown.

Parameters

moduleName
paramName

Returns

the requested parameter

Exceptions

IllegalArgumentException

if the module or parameter does not exist

See also

findParam(String, String)

Definition at line 318 of file Config.java.

References org.matsim.core.config.ConfigGroup.getValue().

Referenced by org.matsim.run.Events2Snapshot.run().

                                                                                  {
        ConfigGroup m = this.modules.get(moduleName);
        if (m == null) {
            log.error("Module \"" + moduleName + "\" is not known.");
            throw new IllegalArgumentException("Module \"" + moduleName + "\" is not known.");
        }
        String str = m.getValue(paramName);
        if (str == null) {
            String message = "Parameter \"" + paramName + "\" of module \"" + moduleName + "\" is not known";
            log.error(message);
            throw new IllegalArgumentException(message);
        }
        return str;
    }

Here is the call graph for this function:

findParam()

final String org.matsim.core.config.Config.findParam	(	final String	moduleName,
		final String	paramName
	)

Returns the value of the specified parameter if it exists, or null otherwise.

Parameters

moduleName	name of the config-module
paramName	name of parameter in the specified module

Returns

value of the parameter if it exists, null otherwise

See also

getParam(String, String)

Definition at line 346 of file Config.java.

References org.matsim.core.config.ConfigGroup.getValue().

Referenced by org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkLocationChoiceConfigGroup(), and org.matsim.facilities.algorithms.WorldConnectLocations.connectFacilitiesWithLinks().

                                                                                   {
        ConfigGroup m = this.modules.get(moduleName);
        if (m == null) {
            return null;
        }
        try {
            String str = m.getValue(paramName);
            return str;
        } catch (IllegalArgumentException e) {
            return null;
        }
    }

Here is the call graph for this function:

toString()

final String org.matsim.core.config.Config.toString

(

)

Definition at line 364 of file Config.java.

                                   {
        return "[nof_modules=" + this.modules.size() + "]";
    }

setParam()

final void org.matsim.core.config.Config.setParam	(	final String	moduleName,
		final String	paramName,
		final String	value
	)

Sets the parameter paramName in the module/config-group moduleName to the specified value. If there is no config-group with the specified name, a new group will be created.

Parameters

moduleName
paramName
value

Definition at line 381 of file Config.java.

References org.matsim.core.config.ConfigGroup.addParam(), org.matsim.core.config.Config.checkIfLocked(), and org.matsim.core.config.Config.createModule().

                                                                                                    {
        checkIfLocked();
        ConfigGroup m = this.modules.get(moduleName);
        if (m == null) {
            m = createModule(moduleName);
            log.info("module \"" + moduleName + "\" added.");
        }
        m.addParam(paramName, value);
    }

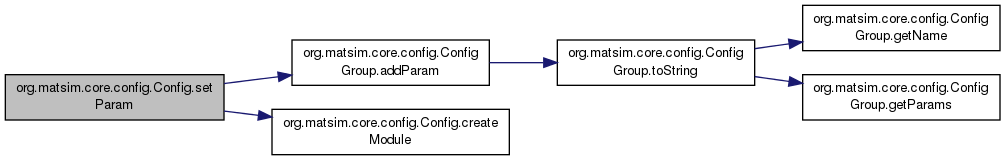

Here is the call graph for this function:

global()

final GlobalConfigGroup org.matsim.core.config.Config.global

(

)

Definition at line 395 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.GlobalConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.population.algorithms.PersonPrepareForSim.adaptRoute(), org.matsim.core.config.groups.ScoringConfigGroup.checkConsistency(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkGlobalConfigGroup(), org.matsim.facilities.FacilitiesUtils.decideOnCoord(), org.matsim.core.population.PopulationUtils.decideOnCoordForActivity(), org.matsim.analysis.TripsAndLegsWriter.getDefaultDelimiter(), org.matsim.core.replanning.modules.KeepLastExecuted.KeepLastExecuted(), org.matsim.utils.gis.matsim2esri.network.Links2ESRIShape.main(), org.matsim.core.replanning.annealing.ReplanningAnnealer.ReplanningAnnealer(), org.matsim.core.replanning.modules.ReRoute.ReRoute(), org.matsim.run.XY2Links.run(), org.matsim.run.Events2Snapshot.run(), org.matsim.run.InitRoutes.run(), org.matsim.pt.replanning.TransitActsRemoverStrategy.TransitActsRemoverStrategy(), org.matsim.withinday.trafficmonitoring.WithinDayTravelTime.WithinDayTravelTime(), and org.matsim.withinday.controller.ExecutedPlansServiceImpl.writeExecutedPlans().

                                            {
        return (GlobalConfigGroup) this.getModule(GlobalConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

controller()

final ControllerConfigGroup org.matsim.core.config.Config.controller

(

)

Definition at line 399 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.ControllerConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.mobsim.hermes.HermesConfigGroup.checkConsistency(), org.matsim.core.config.groups.ControllerConfigGroup.checkConsistency(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkControlerConfigGroup(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkEventsFormatLanesSignals(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkLaneDefinitionRoutingConfiguration(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkScenarioFeaturesEnabled(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkTravelTimeCalculationRoutingConfiguration(), org.matsim.core.replanning.annealing.ReplanningAnnealer.getInnovationStop(), org.matsim.core.router.LeastCostPathCalculatorModule.install(), org.matsim.core.router.TripRouterModule.install(), org.matsim.run.gui.Gui.loadConfigFile(), org.matsim.run.Events2Snapshot.loadSnapshotWriters(), org.matsim.withinday.controller.ExampleWithinDayController.main(), org.matsim.core.config.ConfigUtils.modifyFilePaths(), org.matsim.withinday.controller.ExecutedPlansServiceImpl.notifyAfterMobsim(), org.matsim.core.replanning.annealing.ReplanningAnnealer.notifyIterationStarts(), and org.matsim.core.controler.OutputDirectoryHierarchy.OutputDirectoryHierarchy().

                                                    {
        return (ControllerConfigGroup) this.getModule(ControllerConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

counts()

final CountsConfigGroup org.matsim.core.config.Config.counts

(

)

Definition at line 403 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.CountsConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.ConfigUtils.modifyFilePaths().

                                            {
        return (CountsConfigGroup) this.getModule(CountsConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

scoring()

final ScoringConfigGroup org.matsim.core.config.Config.scoring

(

)

Definition at line 407 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.ScoringConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.replanning.annealing.ReplanningAnnealer.anneal(), org.matsim.core.scoring.functions.ScoringParameters.Builder.Builder(), org.matsim.core.replanning.annealing.ReplanningAnnealer.checkAndFixStartValue(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkConsistency(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkPlanCalcScoreConfigGroup(), ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createParameters(), org.matsim.facilities.FacilitiesFromPopulation.FacilitiesFromPopulation(), ch.sbb.matsim.routing.pt.raptor.IndividualRaptorParametersForPerson.getRaptorParameters(), org.matsim.core.router.costcalculators.RandomizingTimeDistanceTravelDisutilityFactory.RandomizingTimeDistanceTravelDisutilityFactory(), org.matsim.pt.ReconstructingUmlaufBuilder.ReconstructingUmlaufBuilder(), org.matsim.run.InitRoutes.run(), org.matsim.core.scoring.functions.SubpopulationScoringParameters.SubpopulationScoringParameters(), and org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                              {
        return (ScoringConfigGroup) this.getModule(ScoringConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

network()

final NetworkConfigGroup org.matsim.core.config.Config.network

(

)

Definition at line 411 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.NetworkConfigGroup.GROUP_NAME.

Referenced by org.matsim.lanes.LanesUtils.calculateMissingCapacitiesForLanes20(), org.matsim.core.mobsim.qsim.changeeventsengine.NetworkChangeEventsQSimComponentsConfigurator.configure(), org.matsim.core.network.algorithms.NetworkTurnInfoBuilder.createAllowedTurnInfos(), org.matsim.core.network.NetworkUtils.createNetwork(), org.matsim.core.network.NetworkUtils.getCollector(), org.matsim.run.gui.ScheduleValidatorWindow.loadFromConfig(), org.matsim.core.config.ConfigUtils.modifyFilePaths(), org.matsim.core.population.algorithms.PersonPrepareForSim.PersonPrepareForSim(), org.matsim.core.network.NetworkUtils.readNetwork(), org.matsim.core.controler.PrepareForMobsimImpl.run(), org.matsim.run.XY2Links.run(), org.matsim.run.Events2Snapshot.run(), org.matsim.core.controler.PrepareForSimImpl.run(), and org.matsim.run.InitRoutes.run().

                                              {
        return (NetworkConfigGroup) this.getModule(NetworkConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

plans()

final PlansConfigGroup org.matsim.core.config.Config.plans

(

)

Definition at line 415 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.PlansConfigGroup.GROUP_NAME.

Referenced by ch.sbb.matsim.config.SwissRailRaptorConfigGroup.checkConsistency(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkPlansConfigGroup(), org.matsim.core.utils.timing.TimeInterpretation.create(), org.matsim.core.population.PopulationUtils.createPopulation(), org.matsim.core.population.VspPlansCleanerModule.install(), org.matsim.core.config.ConfigUtils.modifyFilePaths(), org.matsim.run.InitRoutes.run(), org.matsim.core.config.ConfigUtils.setVspDefaults(), org.matsim.core.scoring.functions.SubpopulationScoringParameters.SubpopulationScoringParameters(), and org.matsim.withinday.controller.ExecutedPlansServiceImpl.writeExecutedPlans().

                                          {
        return (PlansConfigGroup) this.getModule(PlansConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

households()

final HouseholdsConfigGroup org.matsim.core.config.Config.households

(

)

Definition at line 419 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.HouseholdsConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.ConfigUtils.modifyFilePaths().

                                                    {
        return (HouseholdsConfigGroup) this.getModule(HouseholdsConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

facilities()

final FacilitiesConfigGroup org.matsim.core.config.Config.facilities

(

)

Definition at line 423 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.FacilitiesConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkFacilitiesConfigGroup(), org.matsim.facilities.FacilitiesFromPopulation.FacilitiesFromPopulation(), org.matsim.facilities.MatsimFacilitiesReader.MatsimFacilitiesReader(), and org.matsim.core.config.ConfigUtils.modifyFilePaths().

                                                    {
        return (FacilitiesConfigGroup) this.getModule(FacilitiesConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

replanning()

final ReplanningConfigGroup org.matsim.core.config.Config.replanning

(

)

Definition at line 427 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.ReplanningConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkStrategyConfigGroup(), org.matsim.core.config.ConfigUtils.createAvailableStrategyId(), org.matsim.core.replanning.annealing.ReplanningAnnealer.getInnovationStop(), org.matsim.core.replanning.annealing.ReplanningAnnealer.getStrategyWeights(), org.matsim.core.replanning.conflicts.ConflictModule.install(), org.matsim.core.replanning.strategies.DefaultPlanStrategiesModule.install(), org.matsim.core.replanning.annealing.ReplanningAnnealer.notifyStartup(), org.matsim.core.replanning.inheritance.PlanInheritanceModule.notifyStartup(), and org.matsim.core.replanning.annealing.ReplanningAnnealer.rescaleStartupWeights().

                                                    {
        return (ReplanningConfigGroup) this.getModule(ReplanningConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

travelTimeCalculator()

TravelTimeCalculatorConfigGroup org.matsim.core.config.Config.travelTimeCalculator

(

)

Definition at line 431 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.TravelTimeCalculatorConfigGroup.GROUPNAME.

Referenced by org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkTravelTimeCalculationRoutingConfiguration(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkTravelTimeCalculatorConfigGroup(), and org.matsim.utils.leastcostpathtree.LeastCostPathTree.main().

                                                                  {
        return (TravelTimeCalculatorConfigGroup) this.getModule(TravelTimeCalculatorConfigGroup.GROUPNAME);
    }

Here is the call graph for this function:

scenario()

ScenarioConfigGroup org.matsim.core.config.Config.scenario

(

)

Definition at line 435 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.ScenarioConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.scoring.functions.ScoringParameters.Builder.Builder(), and org.matsim.core.scoring.functions.SubpopulationScoringParameters.SubpopulationScoringParameters().

                                          {
        return (ScenarioConfigGroup) this.getModule(ScenarioConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

routing()

RoutingConfigGroup org.matsim.core.config.Config.routing

(

)

Definition at line 439 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.RoutingConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.groups.ScoringConfigGroup.checkConsistency(), org.matsim.core.population.algorithms.PersonPrepareForSim.checkModeConsistent(), ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createStaticConfig(), org.matsim.core.controler.PrepareForSimImpl.getVehicleTypesForAllNetworkAndMainModes(), org.matsim.core.router.costcalculators.TravelDisutilityModule.install(), org.matsim.core.router.TripRouterModule.install(), org.matsim.core.router.costcalculators.RandomizingTimeDistanceTravelDisutilityFactory.RandomizingTimeDistanceTravelDisutilityFactory(), org.matsim.core.router.NetworkRoutingInclAccessEgressModule.routeBushwhackingLeg(), and org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                        {
        return (RoutingConfigGroup) this.getModule(RoutingConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

vspExperimental()

VspExperimentalConfigGroup org.matsim.core.config.Config.vspExperimental

(

)

Definition at line 443 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.VspExperimentalConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkConsistency(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkConsistency(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkLocationChoiceConfigGroup(), org.matsim.core.config.ConfigUtils.setVspDefaults(), and org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                                        {
        return (VspExperimentalConfigGroup) this.getModule(VspExperimentalConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

qsim()

QSimConfigGroup org.matsim.core.config.Config.qsim

(

)

Definition at line 447 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.QSimConfigGroup.GROUP_NAME.

Referenced by org.matsim.lanes.LanesUtils.calculateMissingCapacitiesForLanes20(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkEventsFormatLanesSignals(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkLaneDefinitionRoutingConfiguration(), org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkQsimConfigGroup(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkScenarioFeaturesEnabled(), org.matsim.core.config.consistency.ConfigConsistencyCheckerImpl.checkTravelTimeCalculationRoutingConfiguration(), org.matsim.core.mobsim.qsim.qnetsimengine.ConfigurableQNetworkFactory.ConfigurableQNetworkFactory(), org.matsim.core.controler.Controler.Controler(), org.matsim.core.utils.timing.TimeInterpretation.create(), org.matsim.core.network.algorithms.NetworkTurnInfoBuilder.createAllowedTurnInfos(), org.matsim.core.mobsim.qsim.qnetsimengine.DefaultQNetworkFactory.createNetsimNode(), org.matsim.core.mobsim.qsim.DefaultTeleportationEngine.DefaultTeleportationEngine(), org.matsim.core.mobsim.qsim.agents.BasicPlanAgentImpl.getPlannedVehicleId(), org.matsim.core.mobsim.qsim.qnetsimengine.DefaultQNetworkFactory.initializeFactory(), org.matsim.core.mobsim.qsim.QSim.initSimTimer(), org.matsim.core.mobsim.qsim.agents.PopulationAgentSource.insertVehicles(), org.matsim.run.Events2Snapshot.prepare(), org.matsim.core.mobsim.qsim.QSim.QSim(), and org.matsim.run.Events2Snapshot.run().

                                  {
        return (QSimConfigGroup) this.getModule(QSimConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

transit()

TransitConfigGroup org.matsim.core.config.Config.transit

(

)

Definition at line 451 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.pt.config.TransitConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkPlansConfigGroup(), org.matsim.core.mobsim.qsim.pt.TransitQSimComponentsConfigurator.configure(), org.matsim.core.scoring.functions.CharyparNagelOpenTimesScoringFunctionFactory.createNewScoringFunction(), org.matsim.core.scoring.functions.CharyparNagelScoringFunctionFactory.createNewScoringFunction(), org.matsim.core.scoring.EventsToLegs.EventsToLegs(), org.matsim.core.mobsim.qsim.pt.TransitQSimEngine.handleDeparture(), org.matsim.core.router.TripRouterModule.install(), org.matsim.run.gui.ScheduleValidatorWindow.loadFromConfig(), org.matsim.pt.utils.TransitScheduleValidator.main(), org.matsim.core.scoring.functions.SubpopulationScoringParameters.SubpopulationScoringParameters(), and org.matsim.core.mobsim.qsim.agents.TransitAgent.TransitAgent().

                                        {
        return (TransitConfigGroup) this.getModule(TransitConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

transitRouter()

TransitRouterConfigGroup org.matsim.core.config.Config.transitRouter

(

)

Definition at line 455 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.pt.config.TransitRouterConfigGroup.GROUP_NAME.

Referenced by ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createParameters(), ch.sbb.matsim.routing.pt.raptor.RaptorUtils.createStaticConfig(), and org.matsim.pt.router.TransitRouterConfig.TransitRouterConfig().

                                                    {
        return (TransitRouterConfigGroup) this.getModule(TransitRouterConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

linkStats()

LinkStatsConfigGroup org.matsim.core.config.Config.linkStats

(

)

Definition at line 459 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.LinkStatsConfigGroup.GROUP_NAME.

                                            {
        return (LinkStatsConfigGroup) this.getModule(LinkStatsConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

timeAllocationMutator()

TimeAllocationMutatorConfigGroup org.matsim.core.config.Config.timeAllocationMutator

(

)

Definition at line 463 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.TimeAllocationMutatorConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkStrategyConfigGroup(), and org.matsim.core.config.ConfigUtils.setVspDefaults().

                                                                    {
        return (TimeAllocationMutatorConfigGroup) this.getModule(TimeAllocationMutatorConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

eventsManager()

EventsManagerConfigGroup org.matsim.core.config.Config.eventsManager

(

)

Definition at line 467 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.EventsManagerConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.mobsim.hermes.HermesConfigGroup.checkConsistency(), and org.matsim.core.controler.Controler.Controler().

                                                    {
        return (EventsManagerConfigGroup) this.getModule(EventsManagerConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

subtourModeChoice()

SubtourModeChoiceConfigGroup org.matsim.core.config.Config.subtourModeChoice

(

)

Definition at line 471 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.GROUP_NAME.

Referenced by org.matsim.core.config.consistency.VspConfigConsistencyCheckerImpl.checkStrategyConfigGroup(), and org.matsim.core.population.algorithms.PermissibleModesCalculatorImpl.PermissibleModesCalculatorImpl().

                                                            {
        return (SubtourModeChoiceConfigGroup) this.getModule(SubtourModeChoiceConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

changeMode()

ChangeModeConfigGroup org.matsim.core.config.Config.changeMode

(

)

Definition at line 475 of file Config.java.

References org.matsim.core.config.groups.ChangeModeConfigGroup.CONFIG_MODULE, and org.matsim.core.config.Config.getModule().

                                              {
        return (ChangeModeConfigGroup) this.getModule(ChangeModeConfigGroup.CONFIG_MODULE);
    }

Here is the call graph for this function:

hermes()

HermesConfigGroup org.matsim.core.config.Config.hermes

(

)

Definition at line 479 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.mobsim.hermes.HermesConfigGroup.NAME.

                                      {
        return (HermesConfigGroup) this.getModule(HermesConfigGroup.NAME);
    }

Here is the call graph for this function:

replanningAnnealer()

ReplanningAnnealerConfigGroup org.matsim.core.config.Config.replanningAnnealer

(

)

Definition at line 483 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.replanning.annealing.ReplanningAnnealerConfigGroup.GROUP_NAME.

                                                              {
        return (ReplanningAnnealerConfigGroup) this.getModule(ReplanningAnnealerConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

planInheritance()

PlanInheritanceConfigGroup org.matsim.core.config.Config.planInheritance

(

)

Definition at line 487 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.PlanInheritanceConfigGroup.GROUP_NAME.

                                                        {
        return (PlanInheritanceConfigGroup) this.getModule(PlanInheritanceConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

addConfigConsistencyChecker()

void org.matsim.core.config.Config.addConfigConsistencyChecker

(

final ConfigConsistencyChecker

checker

)

Definition at line 493 of file Config.java.

Referenced by org.matsim.core.config.Config.addCoreModules(), org.matsim.core.controler.Controler.Controler(), and org.matsim.core.controler.Controler.createInjector().

                                                                                    {
        boolean alreadyExists = false;
        for (ConfigConsistencyChecker ch : consistencyCheckers) {
            if (ch.getClass().equals(checker.getClass())) {
                alreadyExists = true;
            }
        }
        if ( !alreadyExists ) {
            this.consistencyCheckers.add(checker);
        } else {
            log.info( "ConfigConsistencyChecker with runtime type=" + checker.getClass() + " was already added; not adding it a second time" ) ;
        }
    }

removeConfigConsistencyChecker()

void org.matsim.core.config.Config.removeConfigConsistencyChecker

(

final Class

clazz

)

Definition at line 507 of file Config.java.

Referenced by org.matsim.core.controler.Controler.createInjector().

                                                                    {
        // I am not saying that I like this.  But I would like to be able to check config consistency before the iterator is created, but by then we still have
        // unmaterialized config groups, and so I need to remove that checker at that point.  Maybe we can sort this in some different way ...
        consistencyCheckers.removeIf( ch -> ch.getClass().equals( clazz ) );
    }

isLocked()

final boolean org.matsim.core.config.Config.isLocked

(

)

Definition at line 513 of file Config.java.

References org.matsim.core.config.Config.locked.

Referenced by org.matsim.core.config.Config.checkIfLocked().

                                    {
        return this.locked;
    }

setLocked()

final void org.matsim.core.config.Config.setLocked

(

boolean

locked

)

Definition at line 517 of file Config.java.

References org.matsim.core.config.Config.locked.

                                                {
        this.locked = locked;
    }

checkIfLocked()

void org.matsim.core.config.Config.checkIfLocked ( )

private

Definition at line 521 of file Config.java.

References org.matsim.core.config.Config.isLocked().

Referenced by org.matsim.core.config.Config.setParam().

                                 {
        if ( this.isLocked() ) {
            log.error("too late in execution sequence to set config items. Use");
            log.error("   Config config = ConfigUtils.loadConfig(filename); ");
            log.error("   config.xxx().setYyy(...); ");
            log.error("   Controler ctrl = new Controler( config );");
            log.error("or") ;
            log.error("   Config config = ConfigUtils.loadConfig(filename); ");
            log.error("   config.xxx().setYyy(...); ");
            log.error("   Scenario scenario = ScenarioUtils.loadScenario(config);") ;
            log.error("   // do something with scenario") ;
            log.error("   Controler ctrl = new Controler( scenario );");
            log.error("This will be changed to an abortive error in the future."); // kai, feb'13
        }
    }

Here is the call graph for this function:

vehicles()

final VehiclesConfigGroup org.matsim.core.config.Config.vehicles

(

)

Definition at line 537 of file Config.java.

References org.matsim.core.config.Config.getModule(), and org.matsim.core.config.groups.VehiclesConfigGroup.GROUP_NAME.

                                                {
        return (VehiclesConfigGroup) this.getModule(VehiclesConfigGroup.GROUP_NAME);
    }

Here is the call graph for this function:

setContext()

void org.matsim.core.config.Config.setContext

(

URL

context

)

Definition at line 541 of file Config.java.

References org.matsim.core.config.Config.context.

Referenced by org.matsim.core.config.Config.Config(), org.matsim.core.config.ConfigUtils.createConfig(), and org.matsim.core.config.ConfigUtils.loadConfig().

                                        {
        if ( this.context==null  ||  !(context.toString().equals( this.context.toString() ) ) ) {
            log.info("setting context to [" + context + "]");
            // ConfigUtils.createConfig() is used at several places, e.g. when generating an empty
            // scenario to obtain the default factories.  This will evidently produce output here,
            // and in some sense the wrong output, since the relevant context is probably set from
            // some config file path and in fact _not_ changed since this here will be a different
            // ``throwaway'' config instance.  :-(  kai, jun'18
        }
        this.context = context;
    }

getContext()

URL org.matsim.core.config.Config.getContext

(

)

Definition at line 553 of file Config.java.

References org.matsim.core.config.Config.context.

                            {
        return context;
    }

Member Data Documentation

modules

final TreeMap<String, ConfigGroup> org.matsim.core.config.Config.modules = new TreeMap<>()

private

Map of all config-groups known to this instance.

Definition at line 80 of file Config.java.

Referenced by org.matsim.core.config.Config.getModules().

consistencyCheckers

final List<ConfigConsistencyChecker> org.matsim.core.config.Config.consistencyCheckers = new ArrayList<>()

private

Definition at line 90 of file Config.java.

log

final Logger org.matsim.core.config.Config.log = LogManager.getLogger(Config.class)

staticprivate

static Logger-instance.

Definition at line 93 of file Config.java.

locked

boolean org.matsim.core.config.Config.locked = false

private

Definition at line 95 of file Config.java.

Referenced by org.matsim.core.config.Config.isLocked(), and org.matsim.core.config.Config.setLocked().

context

URL org.matsim.core.config.Config.context

private

Definition at line 96 of file Config.java.

Referenced by org.matsim.core.config.Config.getContext(), and org.matsim.core.config.Config.setContext().

---

The documentation for this class was generated from the following file:

• core/config/Config.java
