org.matsim.pt.router.AbstractTransitRouter Class Reference

Inheritance diagram for org.matsim.pt.router.AbstractTransitRouter:

Protected Member Functions
	AbstractTransitRouter (TransitRouterConfig transitRouterConfig)
	AbstractTransitRouter (TransitRouterConfig config, TransitTravelDisutility transitTravelDisutility)
void	setTransitTravelDisutility (TransitTravelDisutility transitTravelDisutility)
final double	getWalkTime (Person person, Coord coord, Coord toCoord)
final double	getTransferTime (Person person, Coord coord, Coord toCoord)
final List< Leg >	createDirectWalkLegList (Person person, Coord fromCoord, Coord toCoord)
List< Leg >	convertPassengerRouteToLegList (double departureTime, InternalTransitPassengerRoute p, Coord fromCoord, Coord toCoord, Person person)
final TransitRouterConfig	getConfig ()
final double	getWalkDisutility (Person person, Coord coord, Coord toCoord)
final TransitTravelDisutility	getTravelDisutility ()

Private Member Functions
Leg	createAccessTransitWalkLeg (Coord fromCoord, RouteSegment routeSegement)
Leg	createEgressTransitWalkLeg (RouteSegment routeSegement, Coord toCoord)
Leg	createTransferTransitWalkLeg (RouteSegment routeSegement)
Leg	createTransitLeg (RouteSegment routeSegment)
Leg	createTransitWalkLeg (Coord fromCoord, Coord toCoord)

Private Attributes
TransitRouterConfig	trConfig
TransitTravelDisutility	travelDisutility

Detailed Description

Definition at line 40 of file AbstractTransitRouter.java.

Constructor & Destructor Documentation

AbstractTransitRouter() [1/2]

org.matsim.pt.router.AbstractTransitRouter.AbstractTransitRouter ( TransitRouterConfig  transitRouterConfig )

protected

Definition at line 45 of file AbstractTransitRouter.java.

                                                                             {
        this.trConfig = transitRouterConfig;
    }

AbstractTransitRouter() [2/2]

org.matsim.pt.router.AbstractTransitRouter.AbstractTransitRouter ( TransitRouterConfig  config, TransitTravelDisutility  transitTravelDisutility  )

protected

Definition at line 49 of file AbstractTransitRouter.java.

                                                                                                                {
        this.trConfig = config;
        this.travelDisutility = transitTravelDisutility;
    }

Member Function Documentation

setTransitTravelDisutility()

void org.matsim.pt.router.AbstractTransitRouter.setTransitTravelDisutility ( TransitTravelDisutility  transitTravelDisutility )

protected

Definition at line 55 of file AbstractTransitRouter.java.

Referenced by org.matsim.pt.router.TransitRouterImpl.TransitRouterImpl().

                                                                                              {
        this.travelDisutility = transitTravelDisutility;
    }

getWalkTime()

final double org.matsim.pt.router.AbstractTransitRouter.getWalkTime ( Person  person, Coord  coord, Coord  toCoord  )

protected

Definition at line 60 of file AbstractTransitRouter.java.

References org.matsim.pt.router.AbstractTransitRouter.getTravelDisutility(), and org.matsim.pt.router.TransitTravelDisutility.getWalkTravelTime().

Referenced by org.matsim.pt.router.AbstractTransitRouter.createDirectWalkLegList(), org.matsim.pt.router.AbstractTransitRouter.createTransitWalkLeg(), and org.matsim.pt.router.TransitRouterImpl.locateWrappedNearestTransitNodes().

                                                                                  {
        return getTravelDisutility().getWalkTravelTime(person, coord, toCoord);
    }

Here is the call graph for this function:

getTransferTime()

final double org.matsim.pt.router.AbstractTransitRouter.getTransferTime ( Person  person, Coord  coord, Coord  toCoord  )

protected

Definition at line 64 of file AbstractTransitRouter.java.

References org.matsim.pt.router.TransitRouterConfig.getAdditionalTransferTime(), org.matsim.pt.router.AbstractTransitRouter.getConfig(), org.matsim.pt.router.AbstractTransitRouter.getTravelDisutility(), and org.matsim.pt.router.TransitTravelDisutility.getWalkTravelTime().

Referenced by org.matsim.pt.router.AbstractTransitRouter.createTransferTransitWalkLeg().

                                                                                      {
        return getTravelDisutility().getWalkTravelTime(person, coord, toCoord) + this.getConfig().getAdditionalTransferTime();
    }

Here is the call graph for this function:

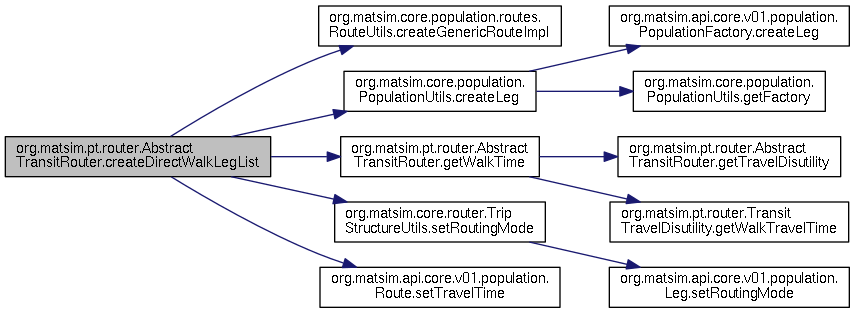

createDirectWalkLegList()

final List<Leg> org.matsim.pt.router.AbstractTransitRouter.createDirectWalkLegList ( Person  person, Coord  fromCoord, Coord  toCoord  )

protected

TODO: Replace by FallbackRoutingModule?! - gl-nov'19

Definition at line 72 of file AbstractTransitRouter.java.

References org.matsim.core.population.routes.RouteUtils.createGenericRouteImpl(), org.matsim.core.population.PopulationUtils.createLeg(), org.matsim.pt.router.AbstractTransitRouter.getWalkTime(), org.matsim.api.core.v01.TransportMode.pt, org.matsim.core.router.TripStructureUtils.setRoutingMode(), org.matsim.api.core.v01.population.Route.setTravelTime(), and org.matsim.api.core.v01.TransportMode.walk.

                                                                                                     {
        List<Leg> legs = new ArrayList<>();
        Leg leg = PopulationUtils.createLeg(TransportMode.walk);
        double walkTime = getWalkTime(person, fromCoord, toCoord);
        leg.setTravelTime(walkTime);
        TripStructureUtils.setRoutingMode(leg, TransportMode.pt);
        Route walkRoute = RouteUtils.createGenericRouteImpl(null, null);
        walkRoute.setTravelTime(walkTime);
        leg.setRoute(walkRoute);
        legs.add(leg);
        return legs;
    }

Here is the call graph for this function:

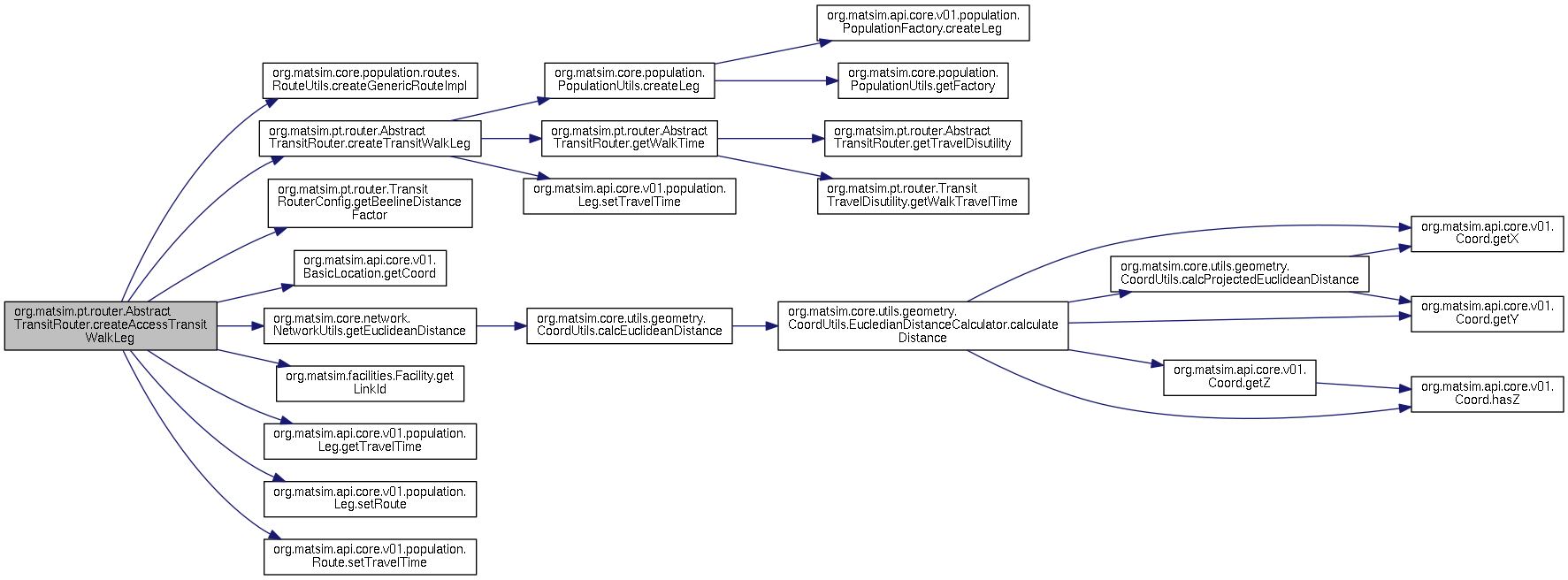

createAccessTransitWalkLeg()

Leg org.matsim.pt.router.AbstractTransitRouter.createAccessTransitWalkLeg ( Coord  fromCoord, RouteSegment  routeSegement  )

private

Definition at line 85 of file AbstractTransitRouter.java.

References org.matsim.core.population.routes.RouteUtils.createGenericRouteImpl(), org.matsim.pt.router.AbstractTransitRouter.createTransitWalkLeg(), org.matsim.pt.router.TransitRouterConfig.getBeelineDistanceFactor(), org.matsim.api.core.v01.BasicLocation.getCoord(), org.matsim.core.network.NetworkUtils.getEuclideanDistance(), org.matsim.facilities.Facility.getLinkId(), org.matsim.api.core.v01.population.Leg.getTravelTime(), org.matsim.core.utils.misc.OptionalTime.seconds, org.matsim.api.core.v01.population.Leg.setRoute(), and org.matsim.api.core.v01.population.Route.setTravelTime().

Referenced by org.matsim.pt.router.AbstractTransitRouter.convertPassengerRouteToLegList().

                                                                                        {
        Leg leg = this.createTransitWalkLeg(fromCoord, routeSegement.fromStop.getCoord());
        Route walkRoute = RouteUtils.createGenericRouteImpl(null, routeSegement.fromStop.getLinkId());
        walkRoute.setTravelTime(leg.getTravelTime().seconds());
        walkRoute.setDistance(trConfig.getBeelineDistanceFactor() * NetworkUtils.getEuclideanDistance(fromCoord, routeSegement.fromStop.getCoord()));
        leg.setRoute(walkRoute);
        return leg;
    }

Here is the call graph for this function:

createEgressTransitWalkLeg()

Leg org.matsim.pt.router.AbstractTransitRouter.createEgressTransitWalkLeg ( RouteSegment  routeSegement, Coord  toCoord  )

private

Definition at line 94 of file AbstractTransitRouter.java.

References org.matsim.core.population.routes.RouteUtils.createGenericRouteImpl(), org.matsim.pt.router.AbstractTransitRouter.createTransitWalkLeg(), org.matsim.pt.router.TransitRouterConfig.getBeelineDistanceFactor(), org.matsim.api.core.v01.BasicLocation.getCoord(), org.matsim.core.network.NetworkUtils.getEuclideanDistance(), org.matsim.facilities.Facility.getLinkId(), org.matsim.api.core.v01.population.Leg.getTravelTime(), org.matsim.core.utils.misc.OptionalTime.seconds, org.matsim.api.core.v01.population.Leg.setRoute(), and org.matsim.api.core.v01.population.Route.setTravelTime().

Referenced by org.matsim.pt.router.AbstractTransitRouter.convertPassengerRouteToLegList().

                                                                                      {
        Leg leg = this.createTransitWalkLeg(routeSegement.toStop.getCoord(), toCoord);
        Route walkRoute = RouteUtils.createGenericRouteImpl(routeSegement.toStop.getLinkId(), null);
        walkRoute.setTravelTime(leg.getTravelTime().seconds());
        walkRoute.setDistance(trConfig.getBeelineDistanceFactor() * NetworkUtils.getEuclideanDistance(routeSegement.toStop.getCoord(), toCoord));
        leg.setRoute(walkRoute);
        return leg;
    }

Here is the call graph for this function:

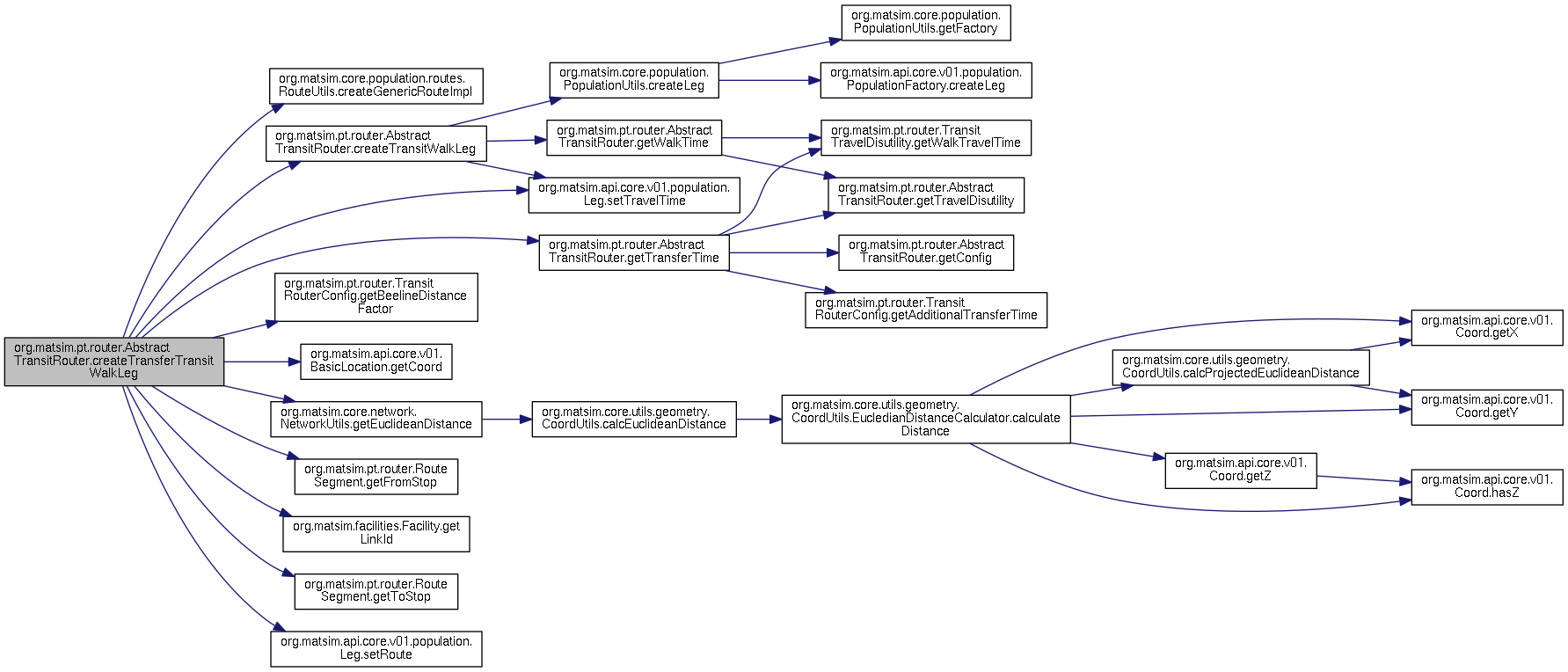

createTransferTransitWalkLeg()

Leg org.matsim.pt.router.AbstractTransitRouter.createTransferTransitWalkLeg ( RouteSegment  routeSegement )

private

Definition at line 103 of file AbstractTransitRouter.java.

References org.matsim.core.population.routes.RouteUtils.createGenericRouteImpl(), org.matsim.pt.router.AbstractTransitRouter.createTransitWalkLeg(), org.matsim.pt.router.TransitRouterConfig.getBeelineDistanceFactor(), org.matsim.api.core.v01.BasicLocation.getCoord(), org.matsim.core.network.NetworkUtils.getEuclideanDistance(), org.matsim.pt.router.RouteSegment.getFromStop(), org.matsim.facilities.Facility.getLinkId(), org.matsim.pt.router.RouteSegment.getToStop(), org.matsim.pt.router.AbstractTransitRouter.getTransferTime(), org.matsim.api.core.v01.population.Leg.setRoute(), and org.matsim.api.core.v01.population.Leg.setTravelTime().

Referenced by org.matsim.pt.router.AbstractTransitRouter.convertPassengerRouteToLegList().

                                                                         {
        Leg leg = this.createTransitWalkLeg(routeSegement.getFromStop().getCoord(), routeSegement.getToStop().getCoord());
        Route walkRoute = RouteUtils.createGenericRouteImpl(routeSegement.getFromStop().getLinkId(), routeSegement.getToStop().getLinkId());
//      walkRoute.setTravelTime(leg.getTravelTime() );
        // transit walk leg should include additional transfer time; Amit, Aug'17
        leg.setTravelTime( getTransferTime(null, routeSegement.getFromStop().getCoord(), routeSegement.getToStop().getCoord()) );
        walkRoute.setTravelTime(getTransferTime(null, routeSegement.getFromStop().getCoord(), routeSegement.getToStop().getCoord()) );
        walkRoute.setDistance(trConfig.getBeelineDistanceFactor() * NetworkUtils.getEuclideanDistance(routeSegement.fromStop.getCoord(), routeSegement.toStop.getCoord()));
        leg.setRoute(walkRoute);

        return leg;
    }

Here is the call graph for this function:

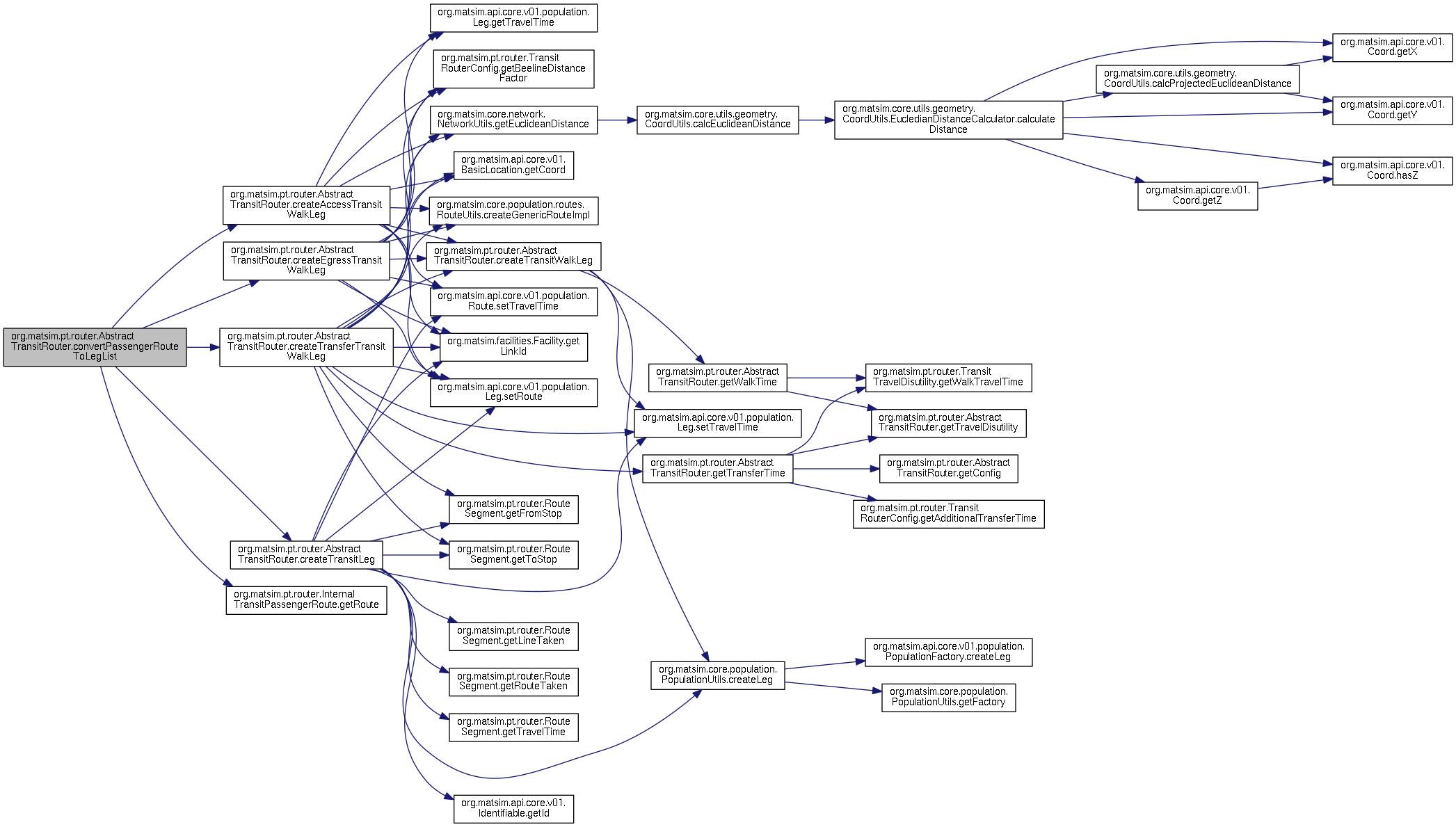

convertPassengerRouteToLegList()

List<Leg> org.matsim.pt.router.AbstractTransitRouter.convertPassengerRouteToLegList ( double  departureTime, InternalTransitPassengerRoute  p, Coord  fromCoord, Coord  toCoord, Person  person  )

protected

Definition at line 116 of file AbstractTransitRouter.java.

References org.matsim.pt.router.AbstractTransitRouter.createAccessTransitWalkLeg(), org.matsim.pt.router.AbstractTransitRouter.createEgressTransitWalkLeg(), org.matsim.pt.router.AbstractTransitRouter.createTransferTransitWalkLeg(), org.matsim.pt.router.AbstractTransitRouter.createTransitLeg(), and org.matsim.pt.router.InternalTransitPassengerRoute.getRoute().

Referenced by org.matsim.pt.router.TransitRouterImpl.calcRoute().

                                                                                                                                                             {
        // convert the route into a sequence of legs
        List<Leg> legs = new ArrayList<>();

        // access leg
        Leg accessLeg;
        // check if first leg extends walking distance
        if (p.getRoute().get(0).getRouteTaken() == null) {
            // route starts with transfer - extend initial walk to that stop
            //TODO: what if first leg extends the walking distance to more than first routeSegment i.e., (accessLeg, transfer, transfer ...). Amit Jan'18
//          accessLeg = createTransitWalkLeg(fromCoord, p.getRoute().get(0).getToStop().getCoord());
            accessLeg = createAccessTransitWalkLeg(fromCoord, p.getRoute().get(0));
            p.getRoute().remove(0);
        } else {
            // do not extend it - add a regular walk leg
            //
//          accessLeg = createTransitWalkLeg(fromCoord, p.getRoute().get(0).getFromStop().getCoord());
            accessLeg = createAccessTransitWalkLeg(fromCoord, p.getRoute().get(0));
        }

        // egress leg
        Leg egressLeg;
        // check if first leg extends walking distance
        if (p.getRoute().get(p.getRoute().size() - 1).getRouteTaken() == null) {
            // route starts with transfer - extend initial walk to that stop
//          egressLeg = createTransitWalkLeg(p.getRoute().get(p.getRoute().size() - 1).getFromStop().getCoord(), toCoord);
            egressLeg = createEgressTransitWalkLeg(p.getRoute().get(p.getRoute().size() - 1), toCoord);
            p.getRoute().remove(p.getRoute().size() - 1);
        } else {
            // do not extend it - add a regular walk leg
            // access leg
//          egressLeg = createTransitWalkLeg(p.getRoute().get(p.getRoute().size() - 1).getToStop().getCoord(), toCoord);
            egressLeg = createEgressTransitWalkLeg(p.getRoute().get(p.getRoute().size() - 1), toCoord);
        }


        // add very first leg
        legs.add(accessLeg);

        // route segments are now in pt-walk-pt sequence
        for (RouteSegment routeSegement : p.getRoute()) {
            if (routeSegement.getRouteTaken() == null) {// transfer
                if (!routeSegement.fromStop.equals(routeSegement.toStop)) { // same to/from stop => no transfer. Amit Feb'18
                    legs.add(createTransferTransitWalkLeg(routeSegement));
                }
            } else {
                // pt leg
                legs.add(createTransitLeg(routeSegement));
            }
        }

        // add last leg
        legs.add(egressLeg);

        return legs;
    }

Here is the call graph for this function:

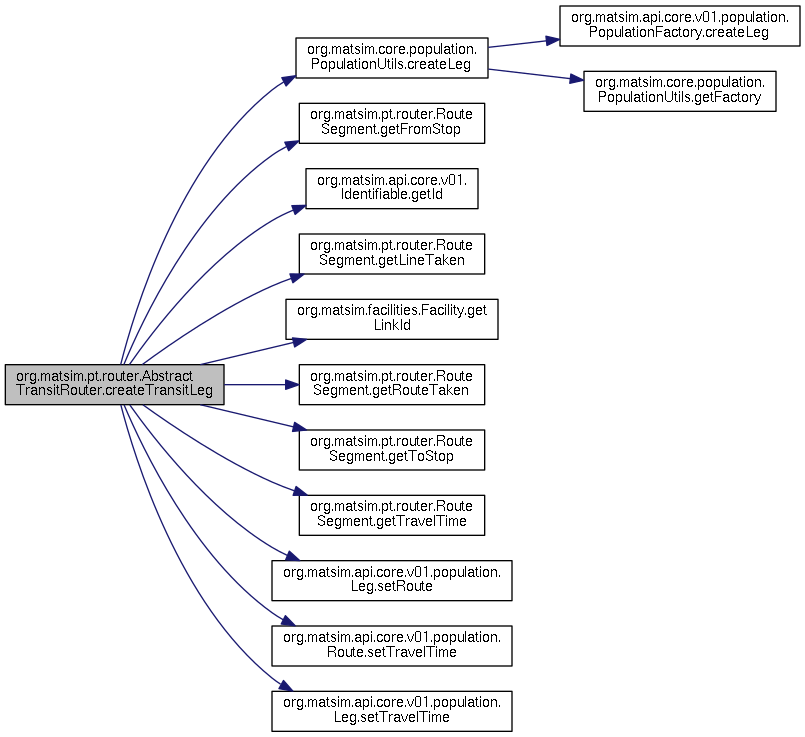

createTransitLeg()

Leg org.matsim.pt.router.AbstractTransitRouter.createTransitLeg ( RouteSegment  routeSegment )

private

Definition at line 173 of file AbstractTransitRouter.java.

References org.matsim.core.population.PopulationUtils.createLeg(), org.matsim.pt.router.RouteSegment.getFromStop(), org.matsim.api.core.v01.Identifiable< T >.getId(), org.matsim.pt.router.RouteSegment.getLineTaken(), org.matsim.facilities.Facility.getLinkId(), org.matsim.pt.router.RouteSegment.getRouteTaken(), org.matsim.pt.router.RouteSegment.getToStop(), org.matsim.pt.router.RouteSegment.getTravelTime(), org.matsim.api.core.v01.TransportMode.pt, org.matsim.api.core.v01.population.Leg.setRoute(), org.matsim.api.core.v01.population.Route.setTravelTime(), and org.matsim.api.core.v01.population.Leg.setTravelTime().

Referenced by org.matsim.pt.router.AbstractTransitRouter.convertPassengerRouteToLegList().

                                                            {
        Leg leg = PopulationUtils.createLeg(TransportMode.pt);

        TransitPassengerRoute ptRoute = new DefaultTransitPassengerRoute( //
                routeSegment.getFromStop().getLinkId(), routeSegment.getToStop().getLinkId(), //
                routeSegment.getFromStop().getId(), routeSegment.getToStop().getId(), //
                routeSegment.getLineTaken(), routeSegment.getRouteTaken()
                );

        ptRoute.setTravelTime(routeSegment.travelTime);
        leg.setRoute(ptRoute);

        leg.setTravelTime(routeSegment.getTravelTime());
        return leg;
    }

Here is the call graph for this function:

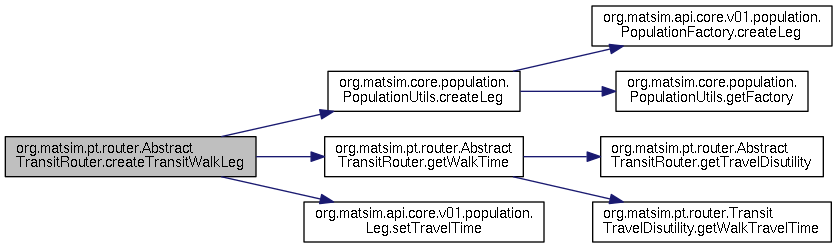

createTransitWalkLeg()

Leg org.matsim.pt.router.AbstractTransitRouter.createTransitWalkLeg ( Coord  fromCoord, Coord  toCoord  )

private

Definition at line 189 of file AbstractTransitRouter.java.

References org.matsim.core.population.PopulationUtils.createLeg(), org.matsim.pt.router.AbstractTransitRouter.getWalkTime(), org.matsim.api.core.v01.population.Leg.setTravelTime(), and org.matsim.api.core.v01.TransportMode.walk.

Referenced by org.matsim.pt.router.AbstractTransitRouter.createAccessTransitWalkLeg(), org.matsim.pt.router.AbstractTransitRouter.createEgressTransitWalkLeg(), and org.matsim.pt.router.AbstractTransitRouter.createTransferTransitWalkLeg().

                                                                     {
        Leg leg = PopulationUtils.createLeg(TransportMode.walk);
        double walkTime = getWalkTime(null, fromCoord, toCoord);
        leg.setTravelTime(walkTime);
        return leg;
    }

Here is the call graph for this function:

getConfig()

final TransitRouterConfig org.matsim.pt.router.AbstractTransitRouter.getConfig ( )

protected

Definition at line 196 of file AbstractTransitRouter.java.

References org.matsim.pt.router.AbstractTransitRouter.trConfig.

Referenced by org.matsim.pt.router.TransitRouterImpl.calcRoute(), org.matsim.pt.router.AbstractTransitRouter.getTransferTime(), and org.matsim.pt.router.TransitRouterImpl.locateWrappedNearestTransitNodes().

                                                    {
        return trConfig;
    }

getWalkDisutility()

final double org.matsim.pt.router.AbstractTransitRouter.getWalkDisutility ( Person  person, Coord  coord, Coord  toCoord  )

protected

Definition at line 200 of file AbstractTransitRouter.java.

References org.matsim.pt.router.AbstractTransitRouter.getTravelDisutility(), and org.matsim.pt.router.TransitTravelDisutility.getWalkTravelDisutility().

Referenced by org.matsim.pt.router.TransitRouterImpl.calcRoute(), and org.matsim.pt.router.TransitRouterImpl.locateWrappedNearestTransitNodes().

                                                                                        {
        return getTravelDisutility().getWalkTravelDisutility(person, coord, toCoord);
    }

Here is the call graph for this function:

getTravelDisutility()

final TransitTravelDisutility org.matsim.pt.router.AbstractTransitRouter.getTravelDisutility ( )

protected

Definition at line 204 of file AbstractTransitRouter.java.

References org.matsim.pt.router.AbstractTransitRouter.travelDisutility.

Referenced by org.matsim.pt.router.TransitRouterImpl.calcRoute(), org.matsim.pt.router.AbstractTransitRouter.getTransferTime(), org.matsim.pt.router.AbstractTransitRouter.getWalkDisutility(), and org.matsim.pt.router.AbstractTransitRouter.getWalkTime().

                                                                  {
        return travelDisutility;
    }

Member Data Documentation

trConfig

TransitRouterConfig org.matsim.pt.router.AbstractTransitRouter.trConfig

private

Definition at line 42 of file AbstractTransitRouter.java.

Referenced by org.matsim.pt.router.AbstractTransitRouter.getConfig().

travelDisutility

TransitTravelDisutility org.matsim.pt.router.AbstractTransitRouter.travelDisutility

private

Definition at line 43 of file AbstractTransitRouter.java.

Referenced by org.matsim.pt.router.AbstractTransitRouter.getTravelDisutility().

---

The documentation for this class was generated from the following file:

• pt/router/AbstractTransitRouter.java
