org.matsim.pt.counts.PtCountControlerListener Class Reference

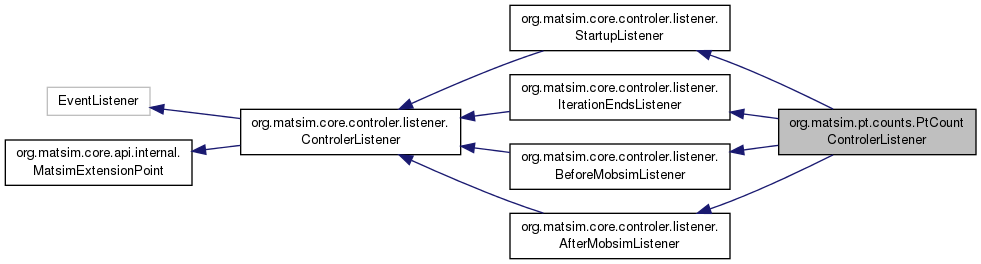

Inheritance diagram for org.matsim.pt.counts.PtCountControlerListener:

Classes
enum	CountType

Public Member Functions
void	notifyStartup (final StartupEvent controlerStartupEvent)
void	notifyBeforeMobsim (BeforeMobsimEvent event)
void	notifyAfterMobsim (AfterMobsimEvent event)
void	notifyIterationEnds (final IterationEndsEvent event)
default double	priority ()

Static Public Attributes
static final String	OPERATION_COMPAREPTCOUNTS = "compare with pt counts"

Private Member Functions
boolean	isActiveInThisIteration (int iter)

Static Private Member Functions
static double []	copyFromIntArray (int[] source)

Private Attributes
EventsManager	eventsManager
OutputDirectoryHierarchy	controlerIO
IterationStopWatch	iterationStopWatch
Network	network
final Config	config
final Counts	boardCounts
final OccupancyAnalyzer	occupancyAnalyzer

Static Private Attributes
static final Logger	log = LogManager.getLogger(PtCountControlerListener.class)
static final String	MODULE_NAME = "ptCounts"

Detailed Description

Definition at line 54 of file PtCountControlerListener.java.

Member Function Documentation

notifyStartup()

void org.matsim.pt.counts.PtCountControlerListener.notifyStartup

(

final StartupEvent

event

)

Notifies all observers that the controler is initialized and they should do the same

Parameters

event

Implements org.matsim.core.controler.listener.StartupListener.

Definition at line 93 of file PtCountControlerListener.java.

References org.matsim.core.config.groups.PtCountsConfigGroup.getAlightCountsFileName(), org.matsim.core.config.groups.PtCountsConfigGroup.getBoardCountsFileName(), org.matsim.core.config.groups.PtCountsConfigGroup.getOccupancyCountsFileName(), and org.matsim.core.config.Config.ptCounts().

                                                                        {
        PtCountsConfigGroup ptCounts = this.config.ptCounts();
        String boardCountsFilename = ptCounts.getBoardCountsFileName();
        String alightCountsFilename = ptCounts.getAlightCountsFileName();
        String occupancyCountsFilename = ptCounts.getOccupancyCountsFileName();
        if (boardCountsFilename == null || alightCountsFilename == null || occupancyCountsFilename == null) {
            throw new RuntimeException("for pt counts, at this point all three files must be given!");
        }
        new MatsimCountsReader(this.alightCounts).readFile(alightCountsFilename);
        new MatsimCountsReader(this.boardCounts).readFile(boardCountsFilename);
        new MatsimCountsReader(this.occupancyCounts).readFile(occupancyCountsFilename);
    }

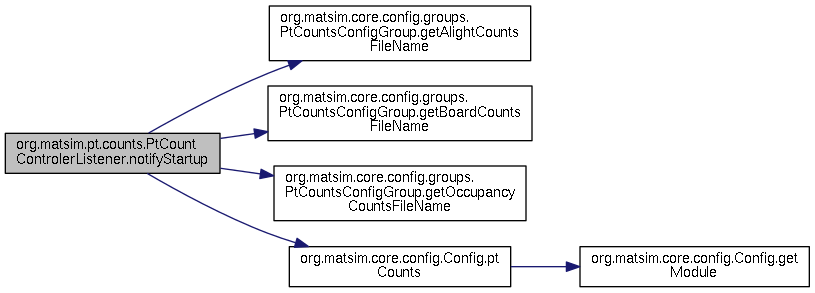

Here is the call graph for this function:

notifyBeforeMobsim()

void org.matsim.pt.counts.PtCountControlerListener.notifyBeforeMobsim

(

BeforeMobsimEvent

event

)

Notifies all observers of the Controler that the mobility simulation will start next.

Parameters

event

Implements org.matsim.core.controler.listener.BeforeMobsimListener.

Definition at line 107 of file PtCountControlerListener.java.

References org.matsim.core.api.experimental.events.EventsManager.addHandler(), org.matsim.pt.counts.PtCountControlerListener.isActiveInThisIteration(), and org.matsim.pt.counts.OccupancyAnalyzer.reset().

                                                            {
        int iter = event.getIteration();
        if ( isActiveInThisIteration( iter ) ) {
            occupancyAnalyzer.reset(iter);
            eventsManager.addHandler(occupancyAnalyzer);
        }
    }

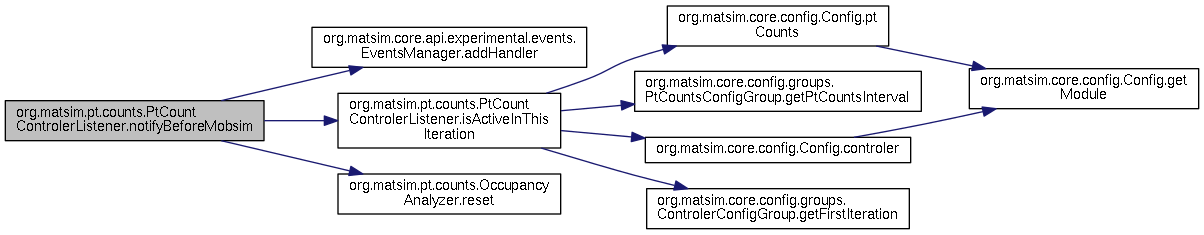

Here is the call graph for this function:

notifyAfterMobsim()

void org.matsim.pt.counts.PtCountControlerListener.notifyAfterMobsim

(

AfterMobsimEvent

event

)

Notifies all observers of the Controler that the mobility simulation just finished.

Parameters

event

Implements org.matsim.core.controler.listener.AfterMobsimListener.

Definition at line 116 of file PtCountControlerListener.java.

References org.matsim.core.controler.OutputDirectoryHierarchy.getIterationFilename(), org.matsim.pt.counts.PtCountControlerListener.isActiveInThisIteration(), org.matsim.core.api.experimental.events.EventsManager.removeHandler(), and org.matsim.pt.counts.OccupancyAnalyzer.write().

                                                          {
        int it = event.getIteration();
        if ( isActiveInThisIteration( it ) ) {
            eventsManager.removeHandler(occupancyAnalyzer);
            occupancyAnalyzer.write(controlerIO.getIterationFilename(it, "occupancyAnalysis.txt"));
        }
    }

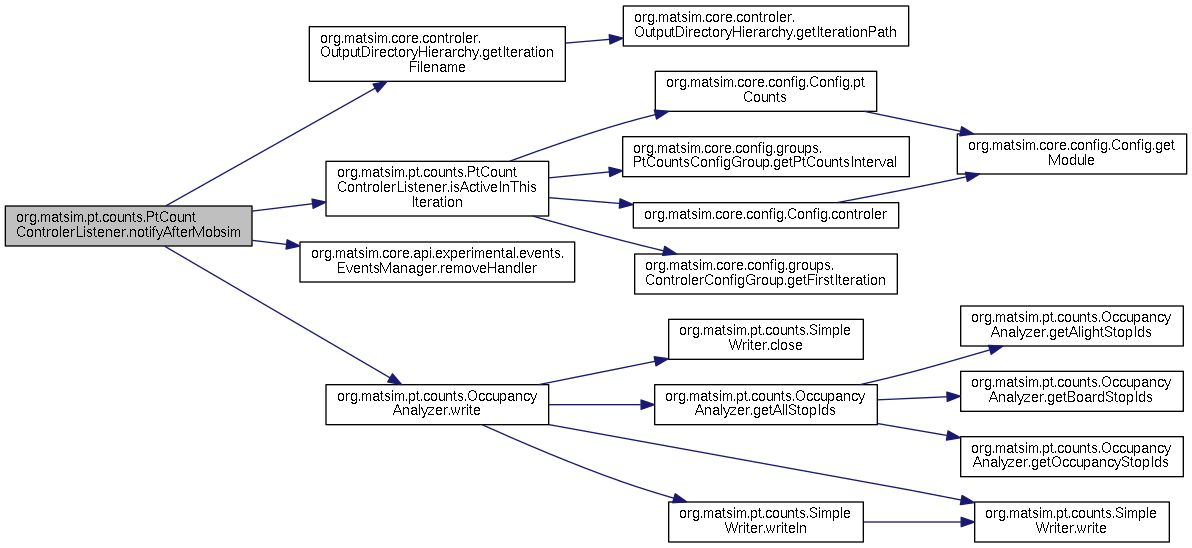

Here is the call graph for this function:

isActiveInThisIteration()

boolean org.matsim.pt.counts.PtCountControlerListener.isActiveInThisIteration ( int  iter )

private

Definition at line 124 of file PtCountControlerListener.java.

References org.matsim.core.config.Config.controler(), org.matsim.core.config.groups.ControlerConfigGroup.getFirstIteration(), org.matsim.core.config.groups.PtCountsConfigGroup.getPtCountsInterval(), and org.matsim.core.config.Config.ptCounts().

Referenced by org.matsim.pt.counts.PtCountControlerListener.notifyAfterMobsim(), org.matsim.pt.counts.PtCountControlerListener.notifyBeforeMobsim(), and org.matsim.pt.counts.PtCountControlerListener.notifyIterationEnds().

                                                        {
        return iter % config.ptCounts().getPtCountsInterval() == 0 && iter >= config.controler().getFirstIteration();
    }

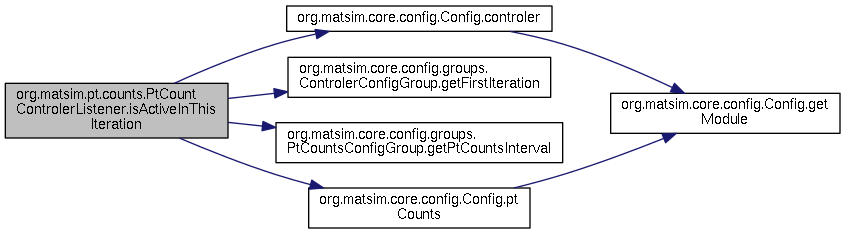

Here is the call graph for this function:

notifyIterationEnds()

void org.matsim.pt.counts.PtCountControlerListener.notifyIterationEnds

(

final IterationEndsEvent

event

)

Notifies all observers of the Controler that a iteration is finished

Parameters

event

Implements org.matsim.core.controler.listener.IterationEndsListener.

Definition at line 129 of file PtCountControlerListener.java.

References org.matsim.pt.counts.PtCountControlerListener.CountType.Alighting, org.matsim.analysis.IterationStopWatch.beginOperation(), org.matsim.pt.counts.PtCountControlerListener.boardCounts, org.matsim.pt.counts.PtCountControlerListener.CountType.Boarding, org.matsim.pt.counts.PtCountControlerListener.copyFromIntArray(), org.matsim.analysis.IterationStopWatch.endOperation(), org.matsim.core.config.Config.findParam(), org.matsim.pt.counts.OccupancyAnalyzer.getAlightVolumesForStop(), org.matsim.pt.counts.OccupancyAnalyzer.getBoardVolumesForStop(), org.matsim.counts.algorithms.CountsComparisonAlgorithm.getComparison(), org.matsim.core.controler.OutputDirectoryHierarchy.getIterationFilename(), org.matsim.pt.counts.OccupancyAnalyzer.getOccupancyVolumesForStop(), org.matsim.core.config.Config.getParam(), org.matsim.pt.counts.PtCountControlerListener.isActiveInThisIteration(), org.matsim.pt.counts.PtCountControlerListener.network, and org.matsim.pt.counts.PtCountControlerListener.CountType.Occupancy.

                                                                    {
        int iter = event.getIteration();
        if ( isActiveInThisIteration( iter ) ) {

            iterationStopWatch.beginOperation(OPERATION_COMPAREPTCOUNTS);

            double countsScaleFactor = Double.parseDouble(this.config.getParam(MODULE_NAME, "countsScaleFactor"));

            Map<CountType,CountsComparisonAlgorithm> cca = new HashMap<CountType,CountsComparisonAlgorithm>();
            cca.put( CountType.Boarding, new CountsComparisonAlgorithm(new CountsComparisonAlgorithm.VolumesForId() {

                @Override
                public double[] getVolumesForStop(Id<TransitStopFacility> locationId) {
                    return copyFromIntArray(occupancyAnalyzer.getBoardVolumesForStop(locationId));
                }
            }, this.boardCounts, network, countsScaleFactor)) ;
            cca.put( CountType.Alighting, new CountsComparisonAlgorithm(new CountsComparisonAlgorithm.VolumesForId() {

                @Override
                public double[] getVolumesForStop(Id<TransitStopFacility> locationId) {
                    return copyFromIntArray(occupancyAnalyzer.getAlightVolumesForStop(locationId));
                }
            }, this.alightCounts, network, countsScaleFactor) ) ;
            cca.put( CountType.Occupancy, new CountsComparisonAlgorithm(new CountsComparisonAlgorithm.VolumesForId() {

                @Override
                public double[] getVolumesForStop(Id<TransitStopFacility> locationId) {
                    return copyFromIntArray(occupancyAnalyzer.getOccupancyVolumesForStop(locationId));
                }
            }, this.occupancyCounts, network, countsScaleFactor) ) ;

            String distanceFilterStr = this.config.findParam(MODULE_NAME, "distanceFilter");
            String distanceFilterCenterNodeId = this.config.findParam(MODULE_NAME, "distanceFilterCenterNode");

            if ((distanceFilterStr != null) && (distanceFilterCenterNodeId != null)) {


                for ( CountsComparisonAlgorithm algo : cca.values() ) {
                    algo.setCountCoordUsingDistanceFilter(Double.parseDouble(distanceFilterStr), distanceFilterCenterNodeId) ;
                }
            }
            for ( CountsComparisonAlgorithm algo : cca.values() ) {
                algo.setCountsScaleFactor(countsScaleFactor);
                algo.run();
            }

            String outputFormat = this.config.findParam(MODULE_NAME, "outputformat");
            if (outputFormat.contains("txt") || outputFormat.contains("all")) {
                for ( Entry<CountType,CountsComparisonAlgorithm> entry : cca.entrySet() ) {
                    CountsComparisonAlgorithm algo = entry.getValue() ;
                    new PtCountSimComparisonTableWriter(algo.getComparison()).write(controlerIO.getIterationFilename(iter, "simCountCompare" + entry.getKey().toString() + ".txt"));
                }
            }

            iterationStopWatch.endOperation(OPERATION_COMPAREPTCOUNTS);
        }
    }

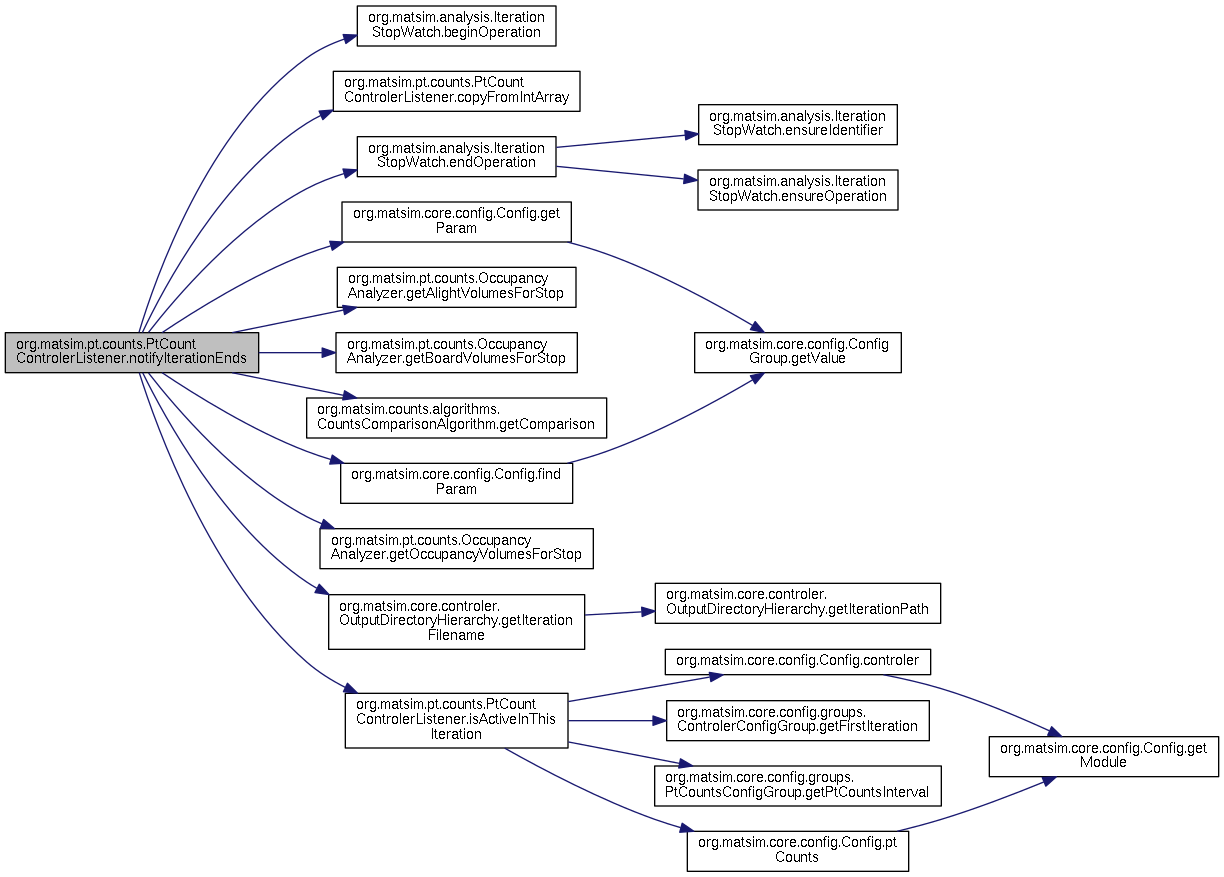

Here is the call graph for this function:

copyFromIntArray()

static double [] org.matsim.pt.counts.PtCountControlerListener.copyFromIntArray ( int []  source )

staticprivate

Definition at line 187 of file PtCountControlerListener.java.

Referenced by org.matsim.pt.counts.PtCountControlerListener.notifyIterationEnds().

                                                           {
        double[] dest = new double[source.length];
        for(int i=0; i<source.length; i++) {
            dest[i] = source[i];
        }
        return dest;
    }

priority()

default double org.matsim.core.controler.listener.ControlerListener.priority ( )

inherited

Return the priority of this listener. Listeners with higher priority are executed first. The default priority is 0.

Definition at line 43 of file ControlerListener.java.

Referenced by org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerAfterMobsimEvent(), org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerBeforeMobsimEvent(), org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerIterationEndsEvent(), org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerIterationStartsEvent(), org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerReplanningEvent(), org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerScoringEvent(), org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerShutdownEvent(), and org.matsim.core.controler.ControlerListenerManagerImpl.fireControlerStartupEvent().

                              {
        return 0;
    }

Member Data Documentation

eventsManager

EventsManager org.matsim.pt.counts.PtCountControlerListener.eventsManager

private

Definition at line 57 of file PtCountControlerListener.java.

controlerIO

OutputDirectoryHierarchy org.matsim.pt.counts.PtCountControlerListener.controlerIO

private

Definition at line 58 of file PtCountControlerListener.java.

iterationStopWatch

IterationStopWatch org.matsim.pt.counts.PtCountControlerListener.iterationStopWatch

private

Definition at line 59 of file PtCountControlerListener.java.

network

Network org.matsim.pt.counts.PtCountControlerListener.network

private

Definition at line 60 of file PtCountControlerListener.java.

Referenced by org.matsim.pt.counts.PtCountControlerListener.notifyIterationEnds().

log

final Logger org.matsim.pt.counts.PtCountControlerListener.log = LogManager.getLogger(PtCountControlerListener.class)

staticprivate

Definition at line 64 of file PtCountControlerListener.java.

OPERATION_COMPAREPTCOUNTS

final String org.matsim.pt.counts.PtCountControlerListener.OPERATION_COMPAREPTCOUNTS = "compare with pt counts"

static

Definition at line 69 of file PtCountControlerListener.java.

MODULE_NAME

final String org.matsim.pt.counts.PtCountControlerListener.MODULE_NAME = "ptCounts"

staticprivate

Definition at line 71 of file PtCountControlerListener.java.

config

final Config org.matsim.pt.counts.PtCountControlerListener.config

private

Definition at line 74 of file PtCountControlerListener.java.

boardCounts

final Counts org.matsim.pt.counts.PtCountControlerListener.boardCounts

private

Definition at line 75 of file PtCountControlerListener.java.

Referenced by org.matsim.pt.counts.PtCountControlerListener.notifyIterationEnds().

occupancyAnalyzer

final OccupancyAnalyzer org.matsim.pt.counts.PtCountControlerListener.occupancyAnalyzer

private

Definition at line 76 of file PtCountControlerListener.java.

---

The documentation for this class was generated from the following file:

• pt/counts/PtCountControlerListener.java
