Static Public Member Functions
static void	readNetwork (Scenario sc)

static void	main (String[] args)

Static Private Attributes
static final Logger	log = Logger.getLogger(RunNetworkEmme2MatsimExample.class)

static final int	PSRC = 0

static final int	EUGENE = 1

static final int	NW_NAME = PSRC

Detailed Description

Translates emme networks into matsim networks.

Uses the "emme network export" result as input, NOT the GIS export.

A serious problem is that there is not enough info in the headers of the emme files: (column counting starts at 0!!!)

link "length" (column # 3) is in arbitrary units, connected to rest of system only through freespeed value
Column # 8-10 are user-defined BUT contain freespeed, capacity, ... in arbitrary order and units (connected to rest of system through user-defined volume-delay functions)

Keyword(s): emme/2

I moved this here because in this way it can be html-referenced out of matsim.org. Additional code that does similar things can be found by searching the playground for "emme/2". kai, mar'11

Author: nagel

Definition at line 59 of file RunNetworkEmme2MatsimExample.java.

Member Function Documentation

static void tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.readNetwork ( Scenario sc )

static

Definition at line 67 of file RunNetworkEmme2MatsimExample.java.

Referenced by tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.main().

                                                   {
         Network network = sc.getNetwork() ;
         ((Network) network).setCapacityPeriod(3600.) ;
         ((Network) network).setEffectiveLaneWidth(3.75) ;
 //      network.setEffectiveCellSize(7.5) ;

         // read emme3 network
         try {
 //          BufferedReader reader = IOUtils.getBufferedReader("/home/nagel/tmp/tab/net1.out" ) ;
             BufferedReader reader = IOUtils.getBufferedReader("/Users/nagel/eclipse/shared-svn/studies/countries/us/psrc/network/emme-export/net1.out" ) ;

             boolean weAreReadingNodes = true ;
             long linkCnt = 0 ;

             String line ;
             while ( (line = reader.readLine()) != null ) {
                 String[] parts = line.split("[ \t\n]+");

                 if ( parts[0].equals("c") ) {
                     // is a comment; ignore
                 } else if ( parts[0].equals("t") ) {
                     if ( parts[1].equals("links") ) {
                         weAreReadingNodes = false ;
                     }
                 } else if ( parts[0].equals("a") ) { // || parts[0].equals("a*") ) { // a* seem to be centroid connectors
                     if ( weAreReadingNodes ) {
                         String idStr = parts[1] ;
                         String xxStr = parts[2] ;
                         String yyStr = parts[3] ;
                         Node node = network.getFactory().createNode(Id.create(idStr, Node.class),
                                 new Coord(Double.parseDouble(xxStr), Double.parseDouble(yyStr)));
                         network.addNode( node ) ;
                     } else {
                         Node fromNode = network.getNodes().get(Id.create(parts[1], Node.class));
                         Node toNode = network.getNodes().get(Id.create(parts[2], Node.class));
                         if ( fromNode==null || toNode==null ) {
 //                          log.info("fromNode or toNode ==null; probably connector link; skipping it ...") ;
                             continue ;
                         }
                         if ( parts[4].equals("r") || parts[4].equals("b") ) {
                             log.info("rail only or bus only link; skipping it ...") ;
                             continue;
                         }
                         double length = 1600 * Double.parseDouble( parts[3] ) ; // probably miles
 //                      String type = parts[5] ;

                         double permlanes = Double.parseDouble( parts[6] ) ;
                         if ( permlanes <= 0 ) { permlanes = 0.5 ; }

                         double capacity, freespeed ;
                         if ( NW_NAME==PSRC ) {
                             capacity = permlanes * Double.parseDouble( parts[8] ) ;
                             if ( capacity <= 500 ) { capacity = 500. ; }

                             freespeed = Double.parseDouble( parts[9] ) ; // mph
                             if ( freespeed < 10. ) { freespeed = 10. ; }
                             freespeed *= 1600./3600. ;
                         } else if ( NW_NAME==EUGENE ) {
                             log.warn("For EUGENE, I have not clarified if capacity really needs to be multiplied by number of lanes.");
                             capacity = permlanes * Double.parseDouble( parts[10] ) ;
                             if ( capacity <= 500 ) { capacity = 500. ; }

                             freespeed = Double.parseDouble( parts[9] ) ; // mph
                             if ( freespeed < 10. ) { freespeed = 10. ; }
                             freespeed *= 1600./3600. ;
                         } else {
                             log.error( "NW_NAME not known; aborting" ) ;
                             System.exit(-1);
                         }

                         Id<Link> id = Id.create(linkCnt, Link.class);
                         linkCnt++;

                         Link link = network.getFactory().createLink(id, fromNode, toNode ) ;
                         link.setLength(length) ;
                         link.setFreespeed(freespeed) ;
                         link.setCapacity(capacity) ;
                         link.setNumberOfLanes(permlanes) ;

                         network.addLink(link);
                     }
                 } else {
                     // something else; do nothing
                 }
             }
         } catch (FileNotFoundException e) {
             e.printStackTrace();
         } catch (IOException e) {
             e.printStackTrace();
         }
     }

Here is the call graph for this function:

static void tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.main ( String[] args )

static

Parameters

args

Definition at line 164 of file RunNetworkEmme2MatsimExample.java.

References org.matsim.core.config.ConfigUtils.createConfig(), org.matsim.core.scenario.ScenarioUtils.createScenario(), org.matsim.api.core.v01.Scenario.getNetwork(), tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.readNetwork(), org.matsim.core.network.algorithms.NetworkCleaner.run(), and org.matsim.api.core.v01.network.NetworkWriter.write().

                                            {
         Config config = ConfigUtils.createConfig() ;
         // (no api-only way to get a scenario without config)

         Scenario sc = ScenarioUtils.createScenario(config) ;
         // (no api-only way to get a network, Id, Coord without scenario)

         Network network = sc.getNetwork();

         log.info("reading network ...");
         readNetwork(sc) ;
         log.info("... finished reading network.\n");

         log.info("cleaning network ...");
         NetworkCleaner nwCleaner = new NetworkCleaner() ;
         nwCleaner.run( network ) ;
         log.info("... finished cleaning network.\n") ;

         log.info("writing network ...") ;
         new NetworkWriter(network).write("/home/nagel/tmp/net.xml.gz");
         log.info("... finished writing network.\n") ;
     }

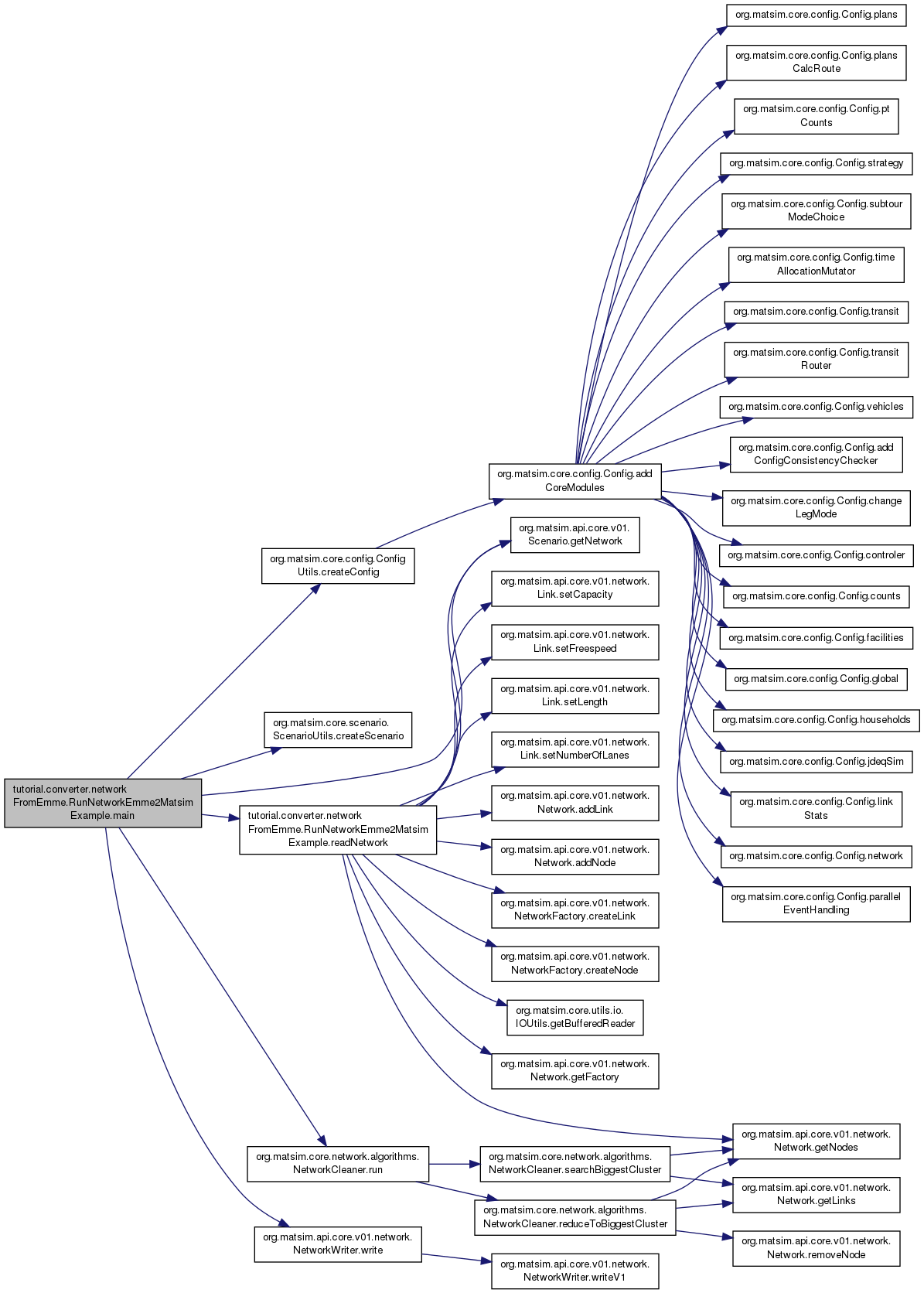

Here is the call graph for this function:

Member Data Documentation

final Logger tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.log = Logger.getLogger(RunNetworkEmme2MatsimExample.class)

staticprivate

Definition at line 60 of file RunNetworkEmme2MatsimExample.java.

final int tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.PSRC = 0

staticprivate

Definition at line 62 of file RunNetworkEmme2MatsimExample.java.

final int tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.EUGENE = 1

staticprivate

Definition at line 63 of file RunNetworkEmme2MatsimExample.java.

final int tutorial.converter.networkFromEmme.RunNetworkEmme2MatsimExample.NW_NAME = PSRC

staticprivate

Definition at line 65 of file RunNetworkEmme2MatsimExample.java.

The documentation for this class was generated from the following file:

tutorial/converter/networkFromEmme/RunNetworkEmme2MatsimExample.java
