org.matsim.pt.router.TransitActsRemover Class Reference

Inheritance diagram for org.matsim.pt.router.TransitActsRemover:

Public Member Functions
void	run (final Plan plan)
void	run (final Plan plan, boolean treatAccessEgressAsTransit)

Detailed Description

Removes all transit activities (like "pt -interaction") as well as the legs following those activities. In addition, all legs with mode "transit_walk" are set to mode "pt" to be routed again with the transit.

See also

PtConstants::TRANSIT_ACTIVITY_TYPE

Author

mrieser

Deprecated:

– use org.matsim.core.population.algorithms.TripsToLegsAlgorithm instead to circumvene problems with different types of access / egress legs and stage activities.

Definition at line 48 of file TransitActsRemover.java.

Member Function Documentation

run() [1/2]

void org.matsim.pt.router.TransitActsRemover.run

(

final Plan

plan

)

Implements org.matsim.core.population.algorithms.PlanAlgorithm.

Definition at line 50 of file TransitActsRemover.java.

                                     {
        run(plan,false);
    }

run() [2/2]

void org.matsim.pt.router.TransitActsRemover.run	(	final Plan	plan,
		boolean	treatAccessEgressAsTransit
	)

Definition at line 54 of file TransitActsRemover.java.

References org.matsim.api.core.v01.population.Leg.getMode(), org.matsim.api.core.v01.population.Plan.getPlanElements(), org.matsim.api.core.v01.population.Activity.getType(), org.matsim.api.core.v01.TransportMode.non_network_walk, org.matsim.api.core.v01.TransportMode.pt, org.matsim.core.population.PopulationUtils.removeActivity(), org.matsim.api.core.v01.population.Leg.setMode(), org.matsim.api.core.v01.population.Leg.setRoute(), org.matsim.pt.PtConstants.TRANSIT_ACTIVITY_TYPE, and org.matsim.api.core.v01.TransportMode.transit_walk.

                                                                         {
        List<String> accessModes = new ArrayList<>();
        accessModes.add(TransportMode.transit_walk);
        if (treatAccessEgressAsTransit){
            accessModes.add(TransportMode.non_network_walk );
            accessModes.add(TransportMode.non_network_walk );
        }
        List<PlanElement> planElements = plan.getPlanElements();
        for (int i = 0, n = planElements.size(); i < n; i++) {
            PlanElement pe = planElements.get(i);
            if (pe instanceof Activity) {
                Activity act = (Activity) pe;
                if (PtConstants.TRANSIT_ACTIVITY_TYPE.equals(act.getType())) {
                    final int index = i;
                    PopulationUtils.removeActivity(((Plan) plan), index);
                    n -= 2;
                    i--; // i will be incremented again in next loop-iteration, so we'll check the next act
                }
            } else if (pe instanceof Leg) {
                Leg leg = (Leg) pe;
                if (accessModes.contains(leg.getMode())) {
                    leg.setMode(TransportMode.pt);
                    leg.setRoute(null);
                }
            }
        }
    }

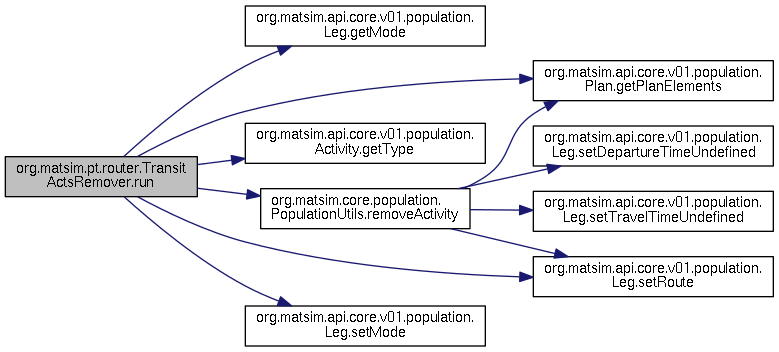

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• pt/router/TransitActsRemover.java
