Public Member Functions
void	render (Graph< Node, Edge > graph)

void	setOut (PrintWriter out)

Protected Member Functions
void	reset ()

void	finish ()

Private Member Functions
void	renderNode (GraphvizNode node)

Map< String, String >	getNodeAttributes (GraphvizNode node)

String	getNodeLabel (GraphvizNode node)

void	renderEdge (GraphvizEdge edge)

Map< String, String >	getEdgeAttributes (GraphvizEdge edge)

String	getAttrString (Map< String, String > attrs)

String	getArrowString (List< ArrowType > arrows)

String	getEdgeEndPoint (String nodeId, String portId, CompassPoint compassPoint)

String	htmlEscape (String str)

void	newInterfaceNode (InterfaceNode node)

void	newImplementationNode (ImplementationNode node)

void	newInstanceNode (InstanceNode node)

void	newDependencyEdge (DependencyEdge edge)

void	newBindingEdge (BindingEdge edge)

void	addNode (GraphvizNode node)

Private Attributes
boolean	fields = false

final Map< NodeId, GraphvizNode >	nodes = Maps.newHashMap()

final List< GraphvizEdge >	edges = Lists.newArrayList()

final NameFactory	nameFactory = new ShortNameFactory()

final PortIdFactory	portIdFactory = new PortIdFactoryImpl()

PrintWriter	out

String	rankdir = "TB"

Detailed Description

Definition at line 34 of file GraphvizRenderer.java.

Member Function Documentation

◆ render()

void org.matsim.guice.GraphvizRenderer.render ( Graph< Node, Edge > graph )

Definition at line 46 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.finish(), org.matsim.guice.GraphvizRenderer.getAttrString(), org.matsim.guice.GraphvizRenderer.newBindingEdge(), org.matsim.guice.GraphvizRenderer.newDependencyEdge(), org.matsim.guice.GraphvizRenderer.newImplementationNode(), org.matsim.guice.GraphvizRenderer.newInstanceNode(), org.matsim.guice.GraphvizRenderer.newInterfaceNode(), org.matsim.guice.GraphvizRenderer.renderEdge(), and org.matsim.guice.GraphvizRenderer.renderNode().

Referenced by org.matsim.guice.MatsimGrapher.postProcess().

                                                 {
         for (Node node : graph.vertexSet()) {
             if (node instanceof InstanceNode) {
                 newInstanceNode(((InstanceNode) node));
             } else if (node instanceof ImplementationNode) {
                 newImplementationNode(((ImplementationNode) node));
             } else if (node instanceof InterfaceNode) {
                 newInterfaceNode(((InterfaceNode) node));
             }
         }
         for (Edge edge : graph.edgeSet()) {
             if (edge instanceof BindingEdge) {
                 newBindingEdge(((BindingEdge) edge));
             } else if (edge instanceof DependencyEdge) {
                 newDependencyEdge(((DependencyEdge) edge));
             }
         }
         out.println("digraph injector {");

         Map<String, String> attrs = Maps.newHashMap();
         attrs.put("rankdir", rankdir);
         out.println("graph " + getAttrString(attrs) + ";");

         for (GraphvizNode node : nodes.values()) {
             renderNode(node);
         }

         for (GraphvizEdge edge : edges) {
             renderEdge(edge);
         }

 //      out.println("{");
 //      out.println("rank=same;");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(Mobsim.class))).getIdentifier()+";");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(TripRouter.class))).getIdentifier()+";");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(PlansScoring.class))).getIdentifier()+";");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(PrepareForSim.class))).getIdentifier()+";");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(PlansReplanning.class))).getIdentifier()+";");
 //      out.println("}");
 //
 //      out.println("{");
 //      out.println("rank=same;");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(RoutingModule.class, Names.named("car")))).getIdentifier()+";");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(TravelTime.class, Names.named("car")))).getIdentifier()+";");
 //      out.println(nodes.get(NodeId.newTypeId(Key.get(TravelDisutilityFactory.class, Names.named("car")))).getIdentifier()+";");
 //      out.println("}");

         finish();

         out.flush();
     }

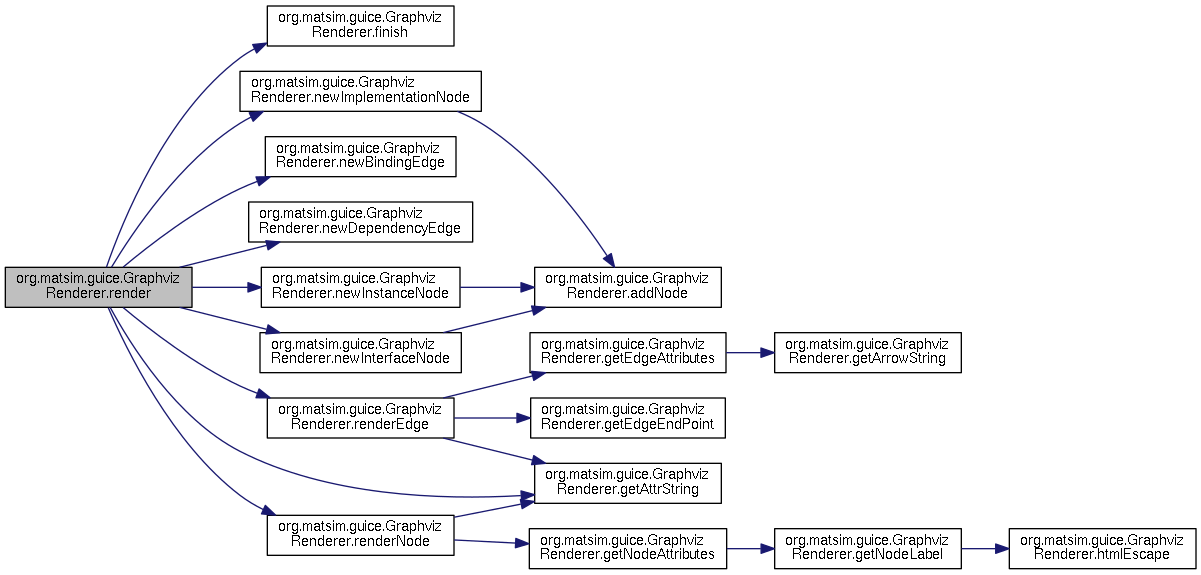

Here is the call graph for this function:

◆ reset()

void org.matsim.guice.GraphvizRenderer.reset ( )

protected

Definition at line 99 of file GraphvizRenderer.java.

                            {
         nodes.clear();
         edges.clear();
     }

◆ setOut()

void org.matsim.guice.GraphvizRenderer.setOut ( PrintWriter out )

Definition at line 104 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.out, and org.matsim.guice.GraphvizRenderer.rankdir.

Referenced by org.matsim.guice.MatsimGrapher.postProcess().

                                         {
         this.out = out;
     }

◆ finish()

void org.matsim.guice.GraphvizRenderer.finish ( )

protected

Definition at line 112 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.render().

                             {
         out.println("}");
     }

◆ renderNode()

void org.matsim.guice.GraphvizRenderer.renderNode ( GraphvizNode node )

private

Definition at line 116 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.getAttrString(), and org.matsim.guice.GraphvizRenderer.getNodeAttributes().

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                {
         Map<String, String> attrs = getNodeAttributes(node);
         out.println(node.getIdentifier() + " " + getAttrString(attrs));
     }

Here is the call graph for this function:

◆ getNodeAttributes()

Map<String, String> org.matsim.guice.GraphvizRenderer.getNodeAttributes ( GraphvizNode node )

private

Definition at line 121 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.getNodeLabel().

Referenced by org.matsim.guice.GraphvizRenderer.renderNode().

                                                                      {
         Map<String, String> attrs = Maps.newHashMap();

         attrs.put("label", getNodeLabel(node));
         // remove most of the margin because the table has internal padding
         attrs.put("margin", "\"0.02,0\"");
         attrs.put("shape", node.getShape().toString());
         attrs.put("style", node.getStyle().toString());

         return attrs;
     }

Here is the call graph for this function:

◆ getNodeLabel()

String org.matsim.guice.GraphvizRenderer.getNodeLabel ( GraphvizNode node )

private

Creates the "label" for a node. This is a string of HTML that defines a table with a heading at the top and (in the case of ImplementationNodes) rows for each of the member fields.

Definition at line 138 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.htmlEscape().

Referenced by org.matsim.guice.GraphvizRenderer.getNodeAttributes().

                                                    {
         String cellborder = node.getStyle() == NodeStyle.INVISIBLE ? "1" : "0";

         StringBuilder html = new StringBuilder();
         html.append("<");
         html.append("<table cellspacing=\"0\" cellpadding=\"5\" cellborder=\"");
         html.append(cellborder).append("\" border=\"0\">");

         html.append("<tr>").append("<td align=\"left\" port=\"header\" ");
         html.append("bgcolor=\"" + node.getHeaderBackgroundColor() + "\">");

         String subtitle = Joiner.on("<br align=\"left\"/>").join(node.getSubtitles());
         if (subtitle.length() != 0) {
             html.append("<font color=\"").append(node.getHeaderTextColor());
             html.append("\" point-size=\"10\">");
             html.append(subtitle).append("<br align=\"left\"/>").append("</font>");
         }

         html.append("<font color=\"" + node.getHeaderTextColor() + "\">");
         html.append(htmlEscape(node.getTitle())).append("<br align=\"left\"/>");
         html.append("</font>").append("</td>").append("</tr>");

         for (Map.Entry<String, String> field : node.getFields().entrySet()) {
             html.append("<tr>");
             html.append("<td align=\"left\" port=\"").append(htmlEscape(field.getKey())).append("\">");
             html.append(htmlEscape(field.getValue()));
             html.append("</td>").append("</tr>");
         }

         html.append("</table>");
         html.append(">");
         return html.toString();
     }

Here is the call graph for this function:

◆ renderEdge()

void org.matsim.guice.GraphvizRenderer.renderEdge ( GraphvizEdge edge )

private

Definition at line 172 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.getAttrString(), org.matsim.guice.GraphvizRenderer.getEdgeAttributes(), and org.matsim.guice.GraphvizRenderer.getEdgeEndPoint().

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                {
         Map<String, String> attrs = getEdgeAttributes(edge);

         String tailId = getEdgeEndPoint(nodes.get(edge.getTailNodeId()).getIdentifier(),
                 edge.getTailPortId(), edge.getTailCompassPoint());

         String headId = getEdgeEndPoint(nodes.get(edge.getHeadNodeId()).getIdentifier(),
                 edge.getHeadPortId(), edge.getHeadCompassPoint());

         out.println(tailId + " -> " + headId + " " + getAttrString(attrs));
     }

Here is the call graph for this function:

◆ getEdgeAttributes()

Map<String, String> org.matsim.guice.GraphvizRenderer.getEdgeAttributes ( GraphvizEdge edge )

private

Definition at line 184 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.getArrowString().

Referenced by org.matsim.guice.GraphvizRenderer.renderEdge().

                                                                      {
         Map<String, String> attrs = Maps.newHashMap();

         attrs.put("arrowhead", getArrowString(edge.getArrowHead()));
         attrs.put("arrowtail", getArrowString(edge.getArrowTail()));
         attrs.put("style", edge.getStyle().toString());

         return attrs;
     }

Here is the call graph for this function:

◆ getAttrString()

String org.matsim.guice.GraphvizRenderer.getAttrString ( Map< String, String > attrs )

private

Definition at line 194 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.render(), org.matsim.guice.GraphvizRenderer.renderEdge(), and org.matsim.guice.GraphvizRenderer.renderNode().

                                                             {
         List<String> attrList = Lists.newArrayList();

         for (Map.Entry<String, String> attr : attrs.entrySet()) {
             String value = attr.getValue();

             if (value != null) {
                 attrList.add(attr.getKey() + "=" + value);
             }
         }

         return "[" + Joiner.on(", ").join(attrList) + "]";
     }

◆ getArrowString()

String org.matsim.guice.GraphvizRenderer.getArrowString ( List< ArrowType > arrows )

private

Turns a List of ArrowTypes into a String that represents combining them. With Graphviz, that just means concatenating them.

Definition at line 213 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.getEdgeAttributes().

                                                           {
         return Joiner.on("").join(arrows);
     }

◆ getEdgeEndPoint()

String org.matsim.guice.GraphvizRenderer.getEdgeEndPoint	(	String	nodeId,
		String	portId,
		CompassPoint	compassPoint
	)

private

Definition at line 217 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.renderEdge().

                                                                                             {
         List<String> portStrings = Lists.newArrayList(nodeId);

         if (portId != null) {
             portStrings.add(portId);
         }

         if (compassPoint != null) {
             portStrings.add(compassPoint.toString());
         }

         return Joiner.on(":").join(portStrings);
     }

◆ htmlEscape()

String org.matsim.guice.GraphvizRenderer.htmlEscape ( String str )

private

Definition at line 231 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.getNodeLabel().

                                           {
         return str.replace("&", "&amp;").replace("<", "&lt;").replace(">", "&gt;");
     }

◆ newInterfaceNode()

void org.matsim.guice.GraphvizRenderer.newInterfaceNode ( InterfaceNode node )

private

Definition at line 235 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.addNode().

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                       {
         NodeId nodeId = node.getId();
         GraphvizNode gnode = new GraphvizNode(nodeId);
         gnode.setStyle(NodeStyle.DASHED);
         Key<?> key = nodeId.getKey();
         gnode.setTitle(nameFactory.getClassName(key));
         gnode.addSubtitle(0, nameFactory.getAnnotationName(key));
         addNode(gnode);
     }

Here is the call graph for this function:

◆ newImplementationNode()

void org.matsim.guice.GraphvizRenderer.newImplementationNode ( ImplementationNode node )

private

Definition at line 245 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.addNode().

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                                 {
         NodeId nodeId = node.getId();
         GraphvizNode gnode = new GraphvizNode(nodeId);
         gnode.setStyle(NodeStyle.SOLID);

         gnode.setHeaderBackgroundColor("#000000");
         gnode.setHeaderTextColor("#ffffff");
         gnode.setTitle(nameFactory.getClassName(nodeId.getKey()));

         if (fields) {
             for (Member member : node.getMembers()) {
                 gnode.addField(portIdFactory.getPortId(member), nameFactory.getMemberName(member));
             }
         }

         addNode(gnode);
     }

Here is the call graph for this function:

◆ newInstanceNode()

void org.matsim.guice.GraphvizRenderer.newInstanceNode ( InstanceNode node )

private

Definition at line 263 of file GraphvizRenderer.java.

References org.matsim.guice.GraphvizRenderer.addNode().

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                     {
         NodeId nodeId = node.getId();
         GraphvizNode gnode = new GraphvizNode(nodeId);
         gnode.setStyle(NodeStyle.SOLID);

         gnode.setHeaderBackgroundColor("#000000");
         gnode.setHeaderTextColor("#ffffff");
         gnode.setTitle(nameFactory.getClassName(nodeId.getKey()));

         gnode.addSubtitle(0, nameFactory.getSourceName(node.getSource()));

         gnode.setHeaderBackgroundColor("#aaaaaa");
         gnode.setHeaderTextColor("#ffffff");
         gnode.setTitle(nameFactory.getInstanceName(node.getInstance()));

         if (fields) {
             for (Member member : node.getMembers()) {
                 gnode.addField(portIdFactory.getPortId(member), nameFactory.getMemberName(member));
             }
         }
         addNode(gnode);
     }

Here is the call graph for this function:

◆ newDependencyEdge()

void org.matsim.guice.GraphvizRenderer.newDependencyEdge ( DependencyEdge edge )

private

Definition at line 286 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                         {
         GraphvizEdge gedge = new GraphvizEdge(edge.getFromId(), edge.getToId());
         InjectionPoint fromPoint = edge.getInjectionPoint();
         if (fromPoint == null) {
             gedge.setTailPortId("header");
         } else {
             gedge.setTailPortId(portIdFactory.getPortId(fromPoint.getMember()));
         }
         gedge.setArrowHead(ImmutableList.of(ArrowType.NORMAL));
         gedge.setTailCompassPoint(CompassPoint.EAST);

         edges.add(gedge);
     }

◆ newBindingEdge()

void org.matsim.guice.GraphvizRenderer.newBindingEdge ( BindingEdge edge )

private

Definition at line 300 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.render().

                                                   {
         GraphvizEdge gedge = new GraphvizEdge(edge.getFromId(), edge.getToId());
         gedge.setStyle(EdgeStyle.DASHED);
         switch (edge.getType()) {
             case NORMAL:
                 gedge.setArrowHead(ImmutableList.of(ArrowType.NORMAL_OPEN));
                 break;

             case PROVIDER:
                 gedge.setArrowHead(ImmutableList.of(ArrowType.NORMAL_OPEN, ArrowType.NORMAL_OPEN));
                 break;

             case CONVERTED_CONSTANT:
                 gedge.setArrowHead(ImmutableList.of(ArrowType.NORMAL_OPEN, ArrowType.DOT_OPEN));
                 break;
         }
         edges.add(gedge);
     }

◆ addNode()

void org.matsim.guice.GraphvizRenderer.addNode ( GraphvizNode node )

private

Definition at line 319 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.newImplementationNode(), org.matsim.guice.GraphvizRenderer.newInstanceNode(), and org.matsim.guice.GraphvizRenderer.newInterfaceNode().

                                             {
         node.setIdentifier("x" + nodes.size());
         nodes.put(node.getNodeId(), node);
     }

Member Data Documentation

◆ fields

boolean org.matsim.guice.GraphvizRenderer.fields = false

private

Definition at line 36 of file GraphvizRenderer.java.

◆ nodes

final Map<NodeId, GraphvizNode> org.matsim.guice.GraphvizRenderer.nodes = Maps.newHashMap()

private

Definition at line 38 of file GraphvizRenderer.java.

◆ edges

final List<GraphvizEdge> org.matsim.guice.GraphvizRenderer.edges = Lists.newArrayList()

private

Definition at line 39 of file GraphvizRenderer.java.

◆ nameFactory

final NameFactory org.matsim.guice.GraphvizRenderer.nameFactory = new ShortNameFactory()

private

Definition at line 40 of file GraphvizRenderer.java.

◆ portIdFactory

final PortIdFactory org.matsim.guice.GraphvizRenderer.portIdFactory = new PortIdFactoryImpl()

private

Definition at line 41 of file GraphvizRenderer.java.

◆ out

PrintWriter org.matsim.guice.GraphvizRenderer.out

private

Definition at line 43 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.setOut().

◆ rankdir

String org.matsim.guice.GraphvizRenderer.rankdir = "TB"

private

Definition at line 44 of file GraphvizRenderer.java.

Referenced by org.matsim.guice.GraphvizRenderer.setOut().

The documentation for this class was generated from the following file:

guice/GraphvizRenderer.java

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ render()

◆ reset()

◆ setOut()

◆ finish()

◆ renderNode()

◆ getNodeAttributes()

◆ getNodeLabel()

◆ renderEdge()

◆ getEdgeAttributes()

◆ getAttrString()

◆ getArrowString()

◆ getEdgeEndPoint()

◆ htmlEscape()

◆ newInterfaceNode()

◆ newImplementationNode()

◆ newInstanceNode()

◆ newDependencyEdge()

◆ newBindingEdge()

◆ addNode()

Member Data Documentation

◆ fields

◆ nodes

◆ edges

◆ nameFactory

◆ portIdFactory

◆ out

◆ rankdir
