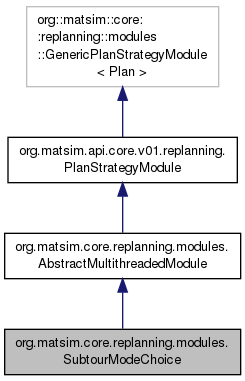

Inheritance diagram for org.matsim.core.replanning.modules.SubtourModeChoice:

Classes
enum	Behavior

Public Member Functions
	SubtourModeChoice (GlobalConfigGroup globalConfigGroup, SubtourModeChoiceConfigGroup subtourModeChoiceConfigGroup, PermissibleModesCalculator permissibleModesCalculator)

final void	setBehavior (Behavior behavior)

PlanAlgorithm	getPlanAlgoInstance ()

void	prepareReplanning (ReplanningContext replanningContext)

void	handlePlan (Plan plan)

void	handlePlan (T plan)

void	finishReplanning ()

Protected Member Functions
String []	getModes ()

Private Attributes
final double	probaForChangeSingleTripMode

final double	coordDist

Behavior	behavior = Behavior.fromSpecifiedModesToSpecifiedModes

final PermissibleModesCalculator	permissibleModesCalculator

final String []	chainBasedModes

final String []	modes

Detailed Description

Changes the transportation mode of all legs of one randomly chosen subtour in a plan to a randomly chosen different mode given a list of possible modes.

A subtour is a consecutive subset of a plan which starts and ends at the same link.

Certain modes are considered only if the choice would not require some resource to appear out of thin air. For example, you can only drive your car back from work if you have previously parked it there. These are called chain-based modes.

The assumption is that each chain-based mode requires one resource (car, bike, ...) and that this resource is initially positioned at home. Home is the location of the first activity in the plan.

If the plan initially violates this constraint, this module may (!) repair it.

Author: michaz

Definition at line 49 of file SubtourModeChoice.java.

Constructor & Destructor Documentation

◆ SubtourModeChoice()

org.matsim.core.replanning.modules.SubtourModeChoice.SubtourModeChoice	(	GlobalConfigGroup	globalConfigGroup,
		SubtourModeChoiceConfigGroup	subtourModeChoiceConfigGroup,
		PermissibleModesCalculator	permissibleModesCalculator
	)

Definition at line 83 of file SubtourModeChoice.java.

References org.matsim.core.replanning.modules.SubtourModeChoice.coordDist, org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.getBehavior(), org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.getChainBasedModes(), org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.getCoordDistance(), org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.getModes(), org.matsim.core.config.groups.GlobalConfigGroup.getNumberOfThreads(), org.matsim.core.config.groups.SubtourModeChoiceConfigGroup.getProbaForRandomSingleTripMode(), org.matsim.core.replanning.modules.SubtourModeChoice.permissibleModesCalculator, org.matsim.core.replanning.modules.SubtourModeChoice.probaForChangeSingleTripMode, and org.matsim.core.replanning.modules.SubtourModeChoice.setBehavior().

                                                                                                                               {
         this(globalConfigGroup.getNumberOfThreads(),
                 subtourModeChoiceConfigGroup.getModes(),
                 subtourModeChoiceConfigGroup.getChainBasedModes(),
                 subtourModeChoiceConfigGroup.getProbaForRandomSingleTripMode(),
                 permissibleModesCalculator, subtourModeChoiceConfigGroup.getCoordDistance()
         );
         this.setBehavior(subtourModeChoiceConfigGroup.getBehavior());
     }

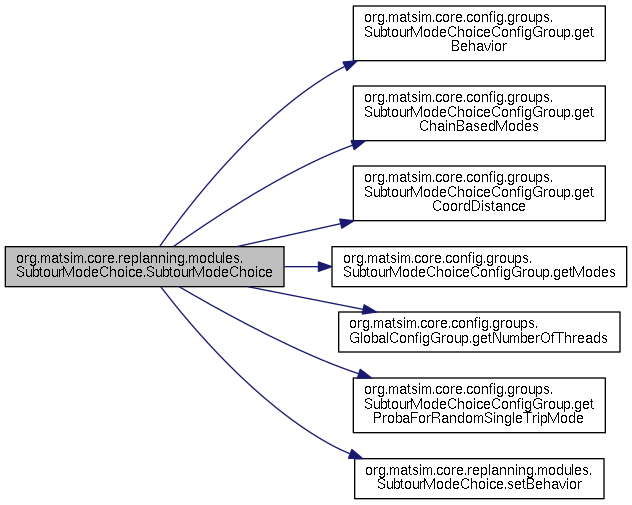

Here is the call graph for this function:

Member Function Documentation

◆ setBehavior()

final void org.matsim.core.replanning.modules.SubtourModeChoice.setBehavior ( Behavior behavior )

Definition at line 110 of file SubtourModeChoice.java.

References org.matsim.core.replanning.modules.SubtourModeChoice.behavior.

Referenced by org.matsim.core.replanning.modules.SubtourModeChoice.SubtourModeChoice().

                                                         {
         this.behavior = behavior ;
     }

◆ getModes()

String [] org.matsim.core.replanning.modules.SubtourModeChoice.getModes ( )

protected

Definition at line 114 of file SubtourModeChoice.java.

                                   {
         return modes.clone();
     }

◆ getPlanAlgoInstance()

PlanAlgorithm org.matsim.core.replanning.modules.SubtourModeChoice.getPlanAlgoInstance ( )

Definition at line 119 of file SubtourModeChoice.java.

References org.matsim.core.replanning.modules.SubtourModeChoice.behavior, org.matsim.core.replanning.modules.SubtourModeChoice.chainBasedModes, org.matsim.core.replanning.modules.SubtourModeChoice.coordDist, org.matsim.core.gbl.MatsimRandom.getLocalInstance(), org.matsim.core.router.TripStructureUtils.getRoutingModeIdentifier(), org.matsim.core.replanning.modules.SubtourModeChoice.modes, org.matsim.core.replanning.modules.SubtourModeChoice.permissibleModesCalculator, and org.matsim.core.replanning.modules.SubtourModeChoice.probaForChangeSingleTripMode.

                                                {

         final ChooseRandomLegModeForSubtour chooseRandomLegMode =
                 new ChooseRandomLegModeForSubtour(
                         TripStructureUtils.getRoutingModeIdentifier(),
                         this.permissibleModesCalculator,
                         this.modes,
                         this.chainBasedModes,
                         MatsimRandom.getLocalInstance(), behavior, probaForChangeSingleTripMode, coordDist);
         return chooseRandomLegMode;
     }

Here is the call graph for this function:

◆ prepareReplanning()

void org.matsim.api.core.v01.replanning.PlanStrategyModule.prepareReplanning ( ReplanningContext replanningContext )

inherited

Initializes this module before handling plans. Modules using an external routine could e.g. open a file here to write the plans out and pass them to the external routines. Multi-threaded modules could initialize and start their threads in this method.

Parameters

replanningContext TODO

Implements org.matsim.core.replanning.modules.GenericPlanStrategyModule< T extends BasicPlan >.

Implemented in org.matsim.core.replanning.modules.ModeAndRouteConsistencyChecker.

◆ handlePlan() [1/2]

void org.matsim.api.core.v01.replanning.PlanStrategyModule.handlePlan ( Plan plan )

inherited

Tells this module to handle the specified plan. It is not required that the plan must immediately be handled, e.g. modules calling external routines could just collect the plans here and start the external routine in finishReplanning(), or multi-threaded modules could just add the plan to a synchronized queue for the threads.

Parameters

plan

See also: finishReplanning()

Implemented in org.matsim.core.replanning.modules.ModeAndRouteConsistencyChecker.

◆ handlePlan() [2/2]

void org.matsim.core.replanning.modules.GenericPlanStrategyModule< T extends BasicPlan >.handlePlan ( T plan )

inherited

Tells this module to handle the specified plan. It is not required that the plan must immediately be handled, e.g. modules calling external routines could just collect the plans here and start the external routine in finishReplanning(), or multi-threaded modules could just add the plan to a synchronized queue for the threads.

Parameters

plan

See also: finishReplanning()

Referenced by org.matsim.core.replanning.GenericPlanStrategyImpl< Plan, Person >.run().

◆ finishReplanning()

void org.matsim.api.core.v01.replanning.PlanStrategyModule.finishReplanning ( )

inherited

Indicates that no additional plans will be handed to this module and waits until this module has finished handling all plans. Modules calling external routines can call those here, or multi-threaded modules can wait here until all threads are finished with their work.
