org.matsim.analysis.CalcLegTimes Class Reference

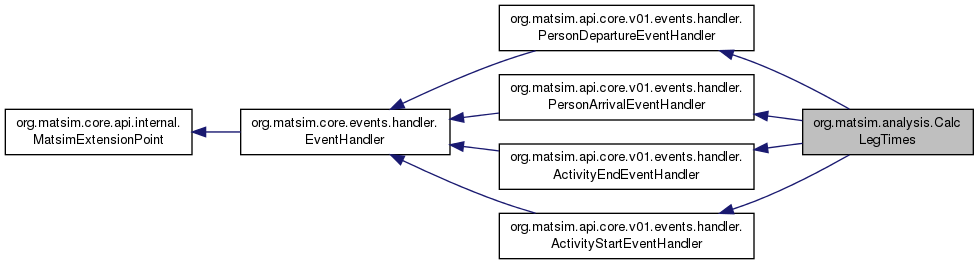

Inheritance diagram for org.matsim.analysis.CalcLegTimes:

Public Member Functions
	CalcLegTimes ()
void	handleEvent (ActivityEndEvent event)
void	handleEvent (final PersonDepartureEvent event)
void	handleEvent (final PersonArrivalEvent event)
void	handleEvent (ActivityStartEvent event)
void	reset (final int iteration)
Map< String, int[]>	getLegStats ()
double	getAverageLegDuration ()
void	writeStats (final String filename)
void	writeStats (final java.io.Writer out) throws UncheckedIOException

Static Public Member Functions
static int	getTimeslotIndex (final double time_s)

Private Attributes
final IdMap< Person, Double >	agentDepartures = new IdMap<>(Person.class)
final IdMap< Person, Double >	agentArrivals = new IdMap<>(Person.class)
final Map< String, int[]>	legStats = new TreeMap<>()
final IdMap< Person, String >	previousActivityTypes = new IdMap<>(Person.class)
double	sumLegDurations = 0
int	sumLegs = 0

Static Private Attributes
static final Logger	log = LogManager.getLogger(CalcLegTimes.class)
static final int	SLOT_SIZE = 300
static final int	MAXINDEX = 12

Detailed Description

Author

mrieser

Calculates the distribution of legs-durations, e.g. how many legs took at most 5 minutes, how many between 5 and 10 minutes, and so on. Also calculates the average leg duration. Legs ended because of vehicles being stuck are not counted.

Definition at line 54 of file CalcLegTimes.java.

Constructor & Destructor Documentation

CalcLegTimes()

org.matsim.analysis.CalcLegTimes.CalcLegTimes

(

)

Definition at line 74 of file CalcLegTimes.java.

                          {

    }

Member Function Documentation

handleEvent() [1/4]

void org.matsim.analysis.CalcLegTimes.handleEvent

(

ActivityEndEvent

event

)

Implements org.matsim.api.core.v01.events.handler.ActivityEndEventHandler.

Definition at line 79 of file CalcLegTimes.java.

References org.matsim.api.core.v01.events.ActivityEndEvent.getPersonId(), and org.matsim.api.core.v01.IdMap< T, V >.put().

                                                    {
        this.previousActivityTypes.put(event.getPersonId(), event.getActType());
    }

Here is the call graph for this function:

handleEvent() [2/4]

void org.matsim.analysis.CalcLegTimes.handleEvent

(

final PersonDepartureEvent

event

)

Implements org.matsim.api.core.v01.events.handler.PersonDepartureEventHandler.

Definition at line 84 of file CalcLegTimes.java.

References org.matsim.api.core.v01.events.PersonDepartureEvent.getPersonId(), and org.matsim.api.core.v01.IdMap< T, V >.put().

                                                              {
        this.agentDepartures.put(event.getPersonId(), event.getTime());
    }

Here is the call graph for this function:

handleEvent() [3/4]

void org.matsim.analysis.CalcLegTimes.handleEvent

(

final PersonArrivalEvent

event

)

Implements org.matsim.api.core.v01.events.handler.PersonArrivalEventHandler.

Definition at line 89 of file CalcLegTimes.java.

References org.matsim.api.core.v01.events.PersonArrivalEvent.getPersonId(), and org.matsim.api.core.v01.IdMap< T, V >.put().

                                                            {
        this.agentArrivals.put(event.getPersonId(), event.getTime());
    }

Here is the call graph for this function:

handleEvent() [4/4]

void org.matsim.analysis.CalcLegTimes.handleEvent

(

ActivityStartEvent

event

)

Implements org.matsim.api.core.v01.events.handler.ActivityStartEventHandler.

Definition at line 95 of file CalcLegTimes.java.

References org.matsim.api.core.v01.events.ActivityStartEvent.getPersonId(), org.matsim.analysis.CalcLegTimes.getTimeslotIndex(), org.matsim.analysis.CalcLegTimes.MAXINDEX, and org.matsim.api.core.v01.IdMap< T, V >.remove().

                                                      {
        Double depTime = this.agentDepartures.remove(event.getPersonId());
        Double arrTime = this.agentArrivals.remove(event.getPersonId());
        if (depTime != null) {
            double travTime = arrTime - depTime;
            String fromActType = previousActivityTypes.remove(event.getPersonId());
            String toActType = event.getActType();
            String legType = fromActType + "---" + toActType;
            int[] stats = this.legStats.get(legType);
            if (stats == null) {
                stats = new int[MAXINDEX + 1];
                for (int i = 0; i <= MAXINDEX; i++) {
                    stats[i] = 0;
                }
                this.legStats.put(legType, stats);
            }
            stats[getTimeslotIndex(travTime)]++;

            this.sumLegDurations += travTime;
            this.sumLegs++;
        }
    }

Here is the call graph for this function:

reset()

void org.matsim.analysis.CalcLegTimes.reset

(

final int

iteration

)

Gives the event handler the possibility to clean up its internal state. Within a Controler-Simulation, this is called before the mobsim starts.

Parameters

iteration

the up-coming iteration from which up-coming events will be from.

Implements org.matsim.core.events.handler.EventHandler.

Definition at line 120 of file CalcLegTimes.java.

References org.matsim.api.core.v01.IdMap< T, V >.clear().

                                           {
        this.previousActivityTypes.clear();
        this.agentDepartures.clear();
        this.legStats.clear();
        this.sumLegDurations = 0;
        this.sumLegs = 0;
    }

Here is the call graph for this function:

getLegStats()

Map<String, int[]> org.matsim.analysis.CalcLegTimes.getLegStats

(

)

Definition at line 128 of file CalcLegTimes.java.

References org.matsim.analysis.CalcLegTimes.legStats.

                                            {
        return this.legStats;
    }

getTimeslotIndex()

static int org.matsim.analysis.CalcLegTimes.getTimeslotIndex ( final double  time_s )

static

Definition at line 132 of file CalcLegTimes.java.

References org.matsim.analysis.CalcLegTimes.MAXINDEX.

Referenced by org.matsim.analysis.CalcLegTimes.handleEvent().

                                                            {
        int idx = (int) (time_s / SLOT_SIZE);
        if (idx > MAXINDEX) idx = MAXINDEX;
        return idx;
    }

getAverageLegDuration()

double org.matsim.analysis.CalcLegTimes.getAverageLegDuration

(

)

Definition at line 138 of file CalcLegTimes.java.

                                          {
        return (this.sumLegDurations / this.sumLegs);
    }

writeStats() [1/2]

void org.matsim.analysis.CalcLegTimes.writeStats

(

final String

filename

)

Definition at line 142 of file CalcLegTimes.java.

References org.matsim.core.utils.io.IOUtils.getBufferedWriter().

                                                  {
        try (BufferedWriter legStatsFile = IOUtils.getBufferedWriter(filename)) {
            writeStats(legStatsFile);
        } catch (IOException e) {
            log.error(e);
        }
    }

Here is the call graph for this function:

writeStats() [2/2]

void org.matsim.analysis.CalcLegTimes.writeStats

(

final java.io.Writer

out

)

throws UncheckedIOException

Definition at line 150 of file CalcLegTimes.java.

References org.matsim.core.utils.misc.Time.writeTime().

                                                                                 {
        try {
            boolean first = true;
            for (Map.Entry<String, int[]> entry : this.legStats.entrySet()) {
                String key = entry.getKey();
                int[] counts = entry.getValue();
                if (first) {
                    first = false;
                    out.write("pattern");
                    for (int i = 0; i < counts.length; i++) {
                        out.write("\t" + (i * SLOT_SIZE / 60) + "+");
                    }
                    out.write("\n");
                }
                out.write(key);
                for (int count : counts) {
                    out.write("\t" + count);
                }
                out.write("\n");
            }
            out.write("\n");
            if (this.sumLegs == 0) {
                out.write("average legs duration: no legs!");
            } else {
                out.write("average leg duration: "
                        + (this.sumLegDurations / this.sumLegs)
                        + " seconds = "
                        + Time.writeTime(((int) (this.sumLegDurations / this.sumLegs))));
            }
            out.write("\n");
        } catch (IOException e) {
            throw new UncheckedIOException(e);
        } finally {
            try {
                out.flush();
            } catch (IOException e) {
                log.error(e);
            }
        }
    }

Here is the call graph for this function:

Member Data Documentation

log

final Logger org.matsim.analysis.CalcLegTimes.log = LogManager.getLogger(CalcLegTimes.class)

staticprivate

Definition at line 57 of file CalcLegTimes.java.

SLOT_SIZE

final int org.matsim.analysis.CalcLegTimes.SLOT_SIZE = 300

staticprivate

Definition at line 59 of file CalcLegTimes.java.

MAXINDEX

final int org.matsim.analysis.CalcLegTimes.MAXINDEX = 12

staticprivate

Definition at line 60 of file CalcLegTimes.java.

Referenced by org.matsim.analysis.CalcLegTimes.getTimeslotIndex(), and org.matsim.analysis.CalcLegTimes.handleEvent().

agentDepartures

final IdMap<Person, Double> org.matsim.analysis.CalcLegTimes.agentDepartures = new IdMap<>(Person.class)

private

Definition at line 62 of file CalcLegTimes.java.

agentArrivals

final IdMap<Person, Double> org.matsim.analysis.CalcLegTimes.agentArrivals = new IdMap<>(Person.class)

private

Definition at line 63 of file CalcLegTimes.java.

legStats

final Map<String, int[]> org.matsim.analysis.CalcLegTimes.legStats = new TreeMap<>()

private

Definition at line 64 of file CalcLegTimes.java.

Referenced by org.matsim.analysis.CalcLegTimes.getLegStats().

previousActivityTypes

final IdMap<Person, String> org.matsim.analysis.CalcLegTimes.previousActivityTypes = new IdMap<>(Person.class)

private

Definition at line 65 of file CalcLegTimes.java.

sumLegDurations

double org.matsim.analysis.CalcLegTimes.sumLegDurations = 0

private

Definition at line 66 of file CalcLegTimes.java.

sumLegs

int org.matsim.analysis.CalcLegTimes.sumLegs = 0

private

Definition at line 67 of file CalcLegTimes.java.

---

The documentation for this class was generated from the following file:

• analysis/CalcLegTimes.java
